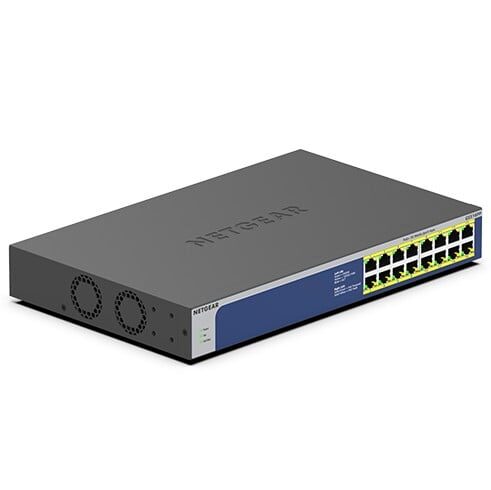

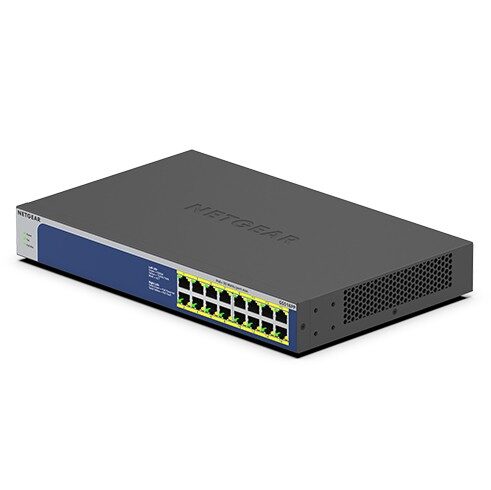

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey

⁦NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey⁩ – תמונה ⁦2⁩

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey

Name: NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Grey - Tact Technologies Solutions | טאקט | ציוד IT ותקשורות, ציוד תואם OEM ורכיבים אלקטרוניים.
Brand: OWC
Availability: InStock

The NETGEAR GS516PP is an unmanaged switch featuring 16 Gigabit Ethernet (10/100/1000) RJ-45 ports. It supports full duplex communication and has a MAC address table with 8000 entries. The switching capacity of the device is 32 Gbit/s. It complies with networking standards IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, and IEEE 802.3u. Additionally, it supports Power over Ethernet (PoE) and is suitable for rack mounting.

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u

10G support

Copper ethernet cabling technology

10GBASE-T, 100BASE-T, 1000BASE-T

Full duplex

Yes

Half duplex

Yes

Auto MDI/MDI-X

Yes

Data transmission

Switching capacity

32 Gbit/s

MAC address table

8000 entries

Latency (1 Gbps)

12 µs

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

0.192 MB

Security

Queue scheduling algorithms

Weighted Round Robin (WRR)

Design

Rack mounting

Yes

Product colour

Blue, Grey

Housing material

Metal

LED indicators

Activity, Fan fail, Link, PoE, Power, Speed

Number of fans

2 fan(s)

Performance

Mean time between failures (MTBF)

2415333.9 h

Power

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Power consumption (max)

316.1 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

260 W

Operational conditions

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

10 – 95%

Operating altitude

0 – 3000 m

Weight & dimensions

Width

330 mm

Depth

207 mm

Height

43 mm

Weight

2.3 kg

Certificates

Certification

FCC 47 CFR Part15B (Class A)
ICES-003 Class A
EN 55024/55032/55035 (Class A)
AS/NZS CISPR 32
VCCI
BSMI CNS13438
KCC

UL 62368-1
CB_IEC 60950-1 + IEC 62368-1 Ed-3
LVD EN60950-1+EN62368-1 Ed-2 Rpt
AS/NZS 62368.1 Ed-2
BSMI CNS14336-1

Logistics data

Harmonized System (HS) code

85176990
