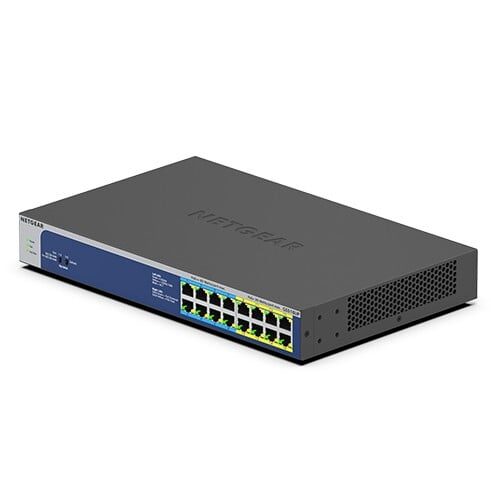

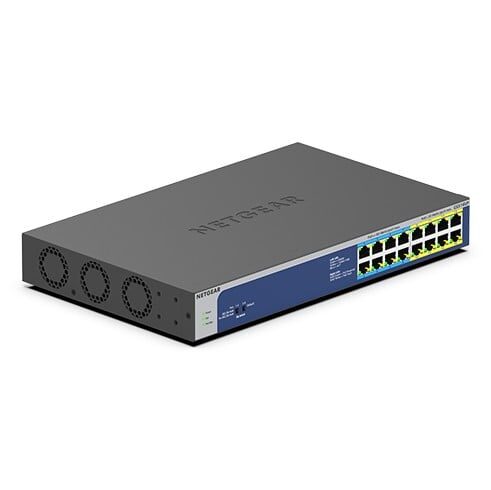

NETGEAR GS516UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The NETGEAR GS516UP is an unmanaged switch designed for simple and effective network connectivity. It features 16 Gigabit Ethernet (10/100/1000) RJ-45 ports that support full duplex communication. This switch has a MAC address table with a capacity of 8000 entries and a switching capacity of 32 Gbit/s. It complies with several networking standards, including IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, and IEEE 802.3p. Additionally, it supports Power over Ethernet (PoE) and is suitable for rack mounting.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Latency (1 Gbps)
12 µs
show more


Jumbo frames support
Yes
show more


Packet forwarding rate (1 Gbps)
1448000 pps
show more


Packet buffer memory
0.192 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Grey
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, PoE, Power, Speed
show more


Number of fans
Number of fans
3 fan(s)
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
1213791 h
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
8 – 4 A
show more


Power consumption (max)
Power consumption (max)
456.8 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
16
show more


Power over Ethernet (PoE) power per port
60 W
show more


Total Power over Ethernet (PoE) budget
380 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
1559.5152 BTU/h
show more

Weight & dimensions

Width
Width
390 mm
show more


Depth
Depth
220 mm
show more


Height
Height
43 mm
show more


Weight
Weight
2.6 kg
show more

Logistics data

Harmonized System (HS) code
85176990
