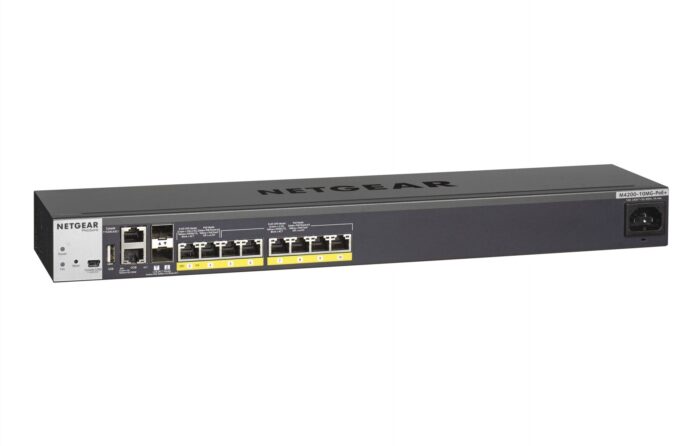

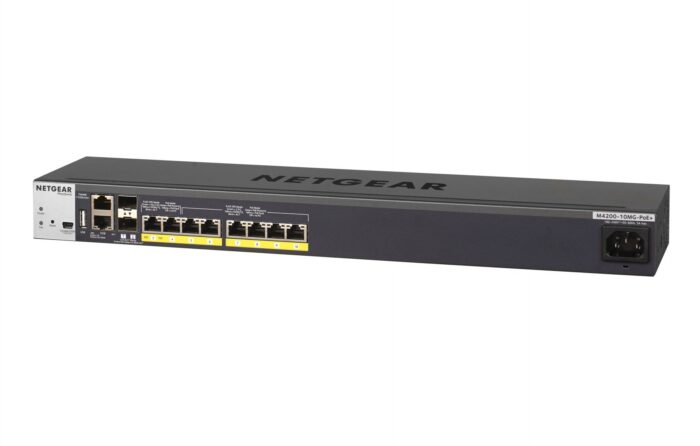

NETGEAR M4200-10MG-PoE+ Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Graphite

The NETGEAR M4200-10MG-PoE+ is a managed switch with Layer 2 and Layer 3 capabilities. It features eight basic switching RJ-45 Ethernet ports that support 10G Ethernet (with speeds of 100/1000/10000 Mbps). The switch also includes one USB 2.0 port and a console port that uses USB. It can handle up to 16,000 MAC address entries and has a switching capacity of 90 Gbit/s. Compliant with IEEE 802.3az networking standards, this switch supports Power over Ethernet (PoE). It is designed for rack mounting and has a form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


ARP inspection
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
2
show more


Console port
USB
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.3az
show more


10G support
10G support
Yes
show more


Cable types supported
Cat5e, Cat6e
show more


Port mirroring
Yes
show more


IP routing
Yes
show more


Flow control support
Yes
show more


Spanning tree protocol
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
1000
show more

Data transmission

Switching capacity
Switching capacity
90 Gbit/s
show more


Throughput
66.9 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Latency (1 Gbps)
2.8 µs
show more


Latency (10 Gbps)
0.9 µs
show more


Packet buffer memory
16 MB
show more

Security

DHCP features
DHCP server, DHCP client
show more


Access Control List (ACL)
Yes
show more


Access Control List (ACL) rules
512
show more


IGMP snooping
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Graphite
show more


LED indicators
Fan fail, Power
show more

Performance

Processor frequency
Processor frequency
800 MHz
show more


Memory type
Memory type
RAM
show more


Internal memory
Internal memory
1000 MB
show more


Flash memory
256 MB
show more


Noise level
Noise level
28.9 dB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
240 W
show more


Power consumption (max)
Power consumption (max)
281.6 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
240 W
show more

Weight & dimensions

Weight
Weight
2.05 kg
show more

Packaging content

Cables included
AC, LAN (RJ-45), Mini-USB, SFP+, USB
show more


Manual
Yes
show more


User guide
Yes
show more

Packaging data

Resource CD
Yes
show more


Stackable kit
Yes
show more


Rubber feet
Yes
show more


Mounting brackets included
Yes
show more


AC adapter included
Yes
show more


Wall mounting kit
Yes
show more
