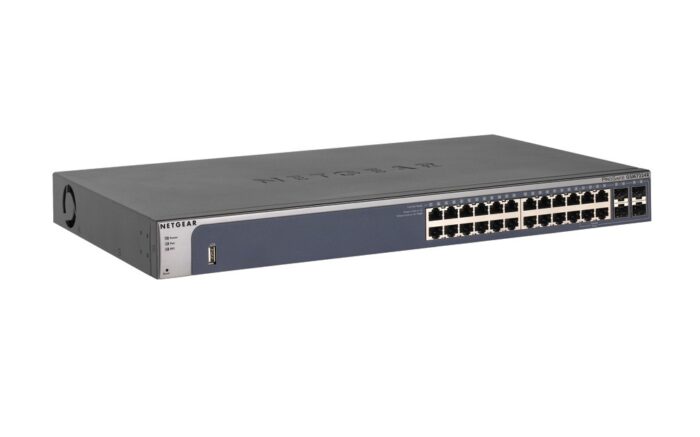

GSM7224-200EUS – Managed – L2+ – Rack Mounting

The NETGEAR GSM7224-200EUS is a managed switch designed for efficient network management and performance. It operates on Layer 2+ and features 24 basic RJ-45 Ethernet ports for versatile connectivity. The switch includes an RS-232 console port for easy configuration. It supports a MAC address table with up to 8000 entries, ideal for handling a substantial amount of network traffic. It complies with multiple networking standards, including IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z, ensuring broad compatibility and reliability. Additionally, the design supports rack mounting for convenient installation in server racks.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2+
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


MIB support
RFC 1213, RFC 1493, RFC 1643
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Gigabit Ethernet (copper) ports quantity
24
show more


SFP module slots quantity
4
show more


SFP/SFP+ slots quantity
4
show more


Console port
RS-232
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
show more


Port mirroring
Yes
show more


Rate limiting
Yes
show more


Spanning tree protocol
Yes
show more


Link aggregation
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


Number of VLANs
1024
show more

Data transmission

Supported data transfer rates
Supported data transfer rates
10/100/1000 Mbps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
8
show more


Maximum data transfer rate
1 Gbit/s
show more


Jumbo frames support
Yes
show more


Packet buffer memory
0.75 MB
show more

Security

DHCP features
DHCP server
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more

Multicast features

Multicast support
Yes
show more

Protocols

Management protocols
SNMPv1, v2c, v3, IGMP v1, v2, v3, DHCP
show more


Data link protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
show more


Supported network protocols
Supported network protocols
SNTP, RMON 1, 2, 3, 9, BOOTP, HTTP & HTTPS, LLDP, LLDP-MED, GARP, GVRP, GMRP, TFTP, SFTP, SCP
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Safety
Safety
CE, EN 60950-1, UL/cUL 60950-1
show more

Performance

Internal memory
Internal memory
128 MB
show more


Flash memory
32 MB
show more


Firmware upgradeable
Yes
show more


Noise level
Noise level
38.6 dB
show more

Power

Input voltage
Input voltage
12 V
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Latency
Latency
20 us
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
440 x 205 x 43 mm
show more


Connectivity technology
Connectivity technology
Wired
show more


Bandwidth
48 Gbit/s
show more


Weight (imperial)
3.64 kg (8.03 lbs)
show more


Dimensions (W x D x H) (imperial)
439.4 x 205.7 x 40.6 mm (17.3 x 8.1 x 1.6")
show more


Connectivity LEDs
Y
show more


Power supply
Power supply
38.5 W
show more


Electromagnetic emissions
CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, VCCI Class A, C-Tick
show more


Networking features
Ethernet, Fast Ethernet, Gigabit Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Operating temperature (T-T)
32 – 131 °F
show more

Weight & dimensions

Weight
Weight
3.65 kg
