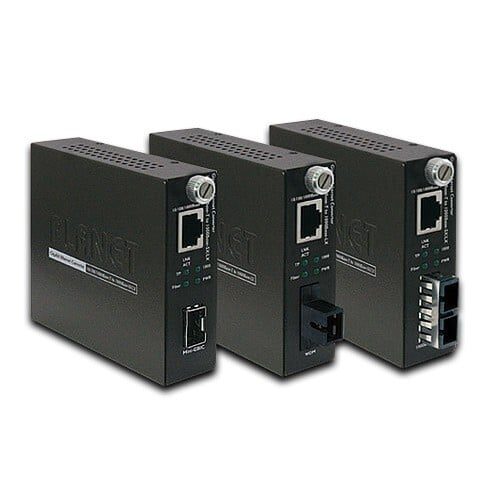

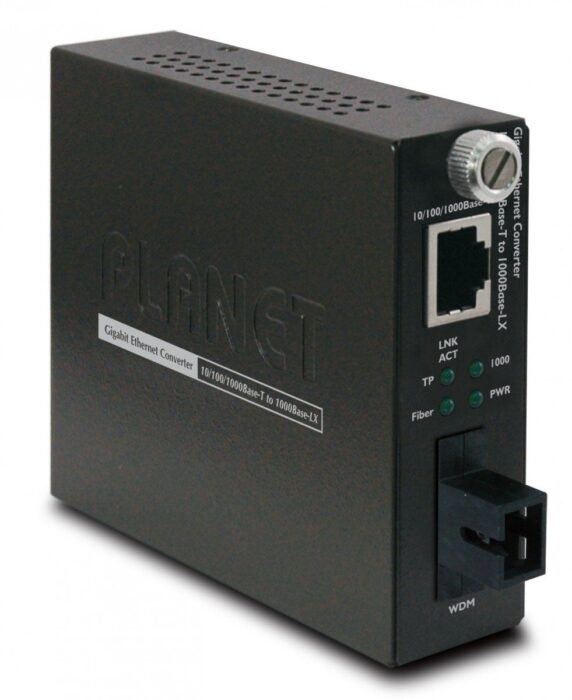

PLANET GST-806A60 Network Media Converter 2000 Mbit/s 1310 nm Black

The PLANET GST-806A60 features a maximum data transfer rate of 2000 Mbit/s and supports several networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, and IEEE 802.3z. It uses a Gigabit Ethernet interface and offers a maximum transfer distance of 60,000 meters. The device operates at a wavelength of 1310 nm and comes in a black color. It employs wired connectivity technology and requires an input voltage of 5 V and an input current of 2 A. The typical power consumption of the PLANET GST-806A60 is 3.1 W.

Network

Maximum data transfer rate
Maximum data transfer rate
2000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T, 1000BASE-TX
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more


Jumbo frames
9000
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Performance

Maximum transfer distance
Maximum transfer distance
60000 m
show more


Wavelength
Wavelength
1310 nm
show more


Wavelength-division multiplexing (WDM)
Yes
show more

Features

Internal
Internal
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


DC-in jack
DC-in jack
Yes
show more

Power

Input voltage
Input voltage
5 V
show more


Input current
2 A
show more


Power consumption (typical)
Power consumption (typical)
3.1 W
show more

Weight & dimensions

Width
Width
81 mm
show more


Depth
Depth
94 mm
show more


Height
Height
26 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Certificates

Certification
FCC, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
