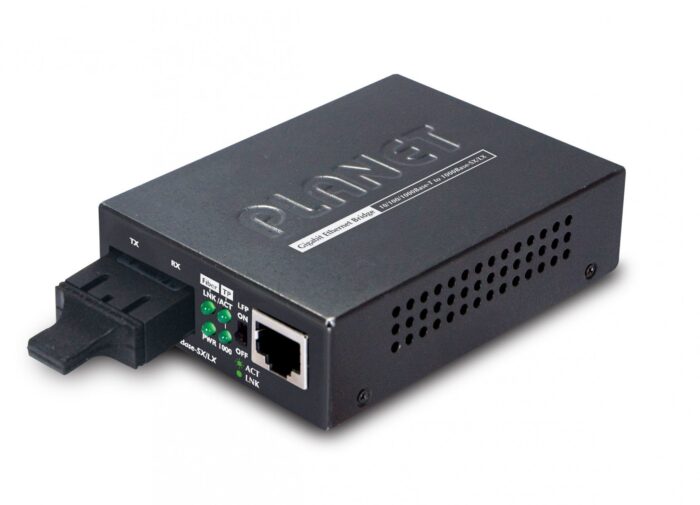

Planet GT-802S – Media Converter 1000 Mbit/s – 1000Base-T – 1000Base-LX (GT-802S)

The PLANET GT-802S is a high-performance device with a maximum data transfer rate of 1000 Mbit/s. It features a converter input interface of 1000Base-T and a converter output interface of 1000Base-LX, capable of supporting a maximum transfer distance of up to 100,000 meters. The device operates at a wavelength of 1310 nm, and its minimum transmission power is -9.5 dBmW. It is available in a sleek black color and is equipped with an SC fiber optic connector. The device relies on wired connectivity technology. Designed for efficient energy use, it has an input voltage of 5 V and an input current of 2 A, with a typical power consumption of 5.6 W.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
1000Base-T
show more


Converter output interface
1000Base-LX
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Duplex system
Duplex system
Full, Half
show more

Performance

Maximum transfer distance
Maximum transfer distance
100000 m
show more


Wavelength
Wavelength
1310 nm
show more


Tx power (min)
-9.5 dBmW
show more


Tx power (max)
-3 dBmW
show more

Features

Internal
Internal
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more

Power

Input voltage
Input voltage
5 V
show more


Input current
2 A
show more


Power consumption (typical)
Power consumption (typical)
5.6 W
show more

Weight & dimensions

Width
Width
94 mm
show more


Depth
Depth
70 mm
show more


Height
Height
26 mm
show more


Weight
Weight
200 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
FCC Class A, CE Class A
show more

Logistics data

Harmonized System (HS) code
85176990
show more
