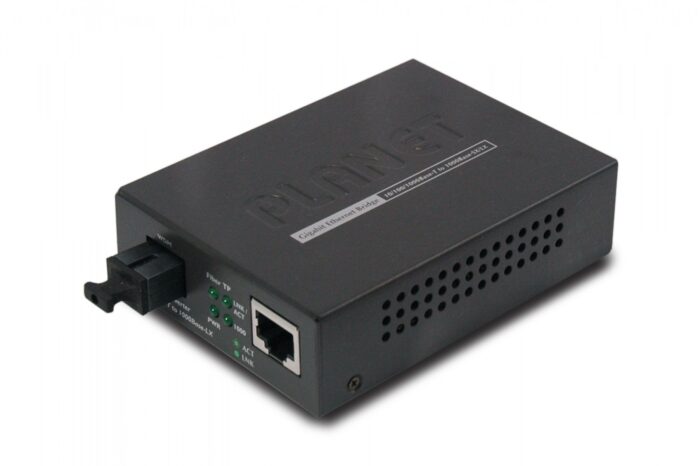

PLANET GT-806B15 Network Media Converter 2000 Mbit/s 1550 nm Black

The PLANET GT-806B15 is designed for high-speed data transfer with a maximum rate of 2000 Mbit/s. It supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. It features a Gigabit Ethernet interface, enabling reliable and fast connectivity. The device is capable of transferring data over a maximum distance of 15,000 meters and operates on a wavelength of 1550 nm. The minimum transmission power is -9 dBmW. The product is black in color and uses an SC fiber optic connector. It employs wired connectivity technology, requires an input voltage of 5 V and an input current of 2 A, with a typical power consumption of 4.6 W.

Network

Maximum data transfer rate
Maximum data transfer rate
2000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Fiber ethernet cabling technology
1000BASE‑LX
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Performance

Maximum transfer distance
Maximum transfer distance
15000 m
show more


Wavelength
Wavelength
1550 nm
show more


Wavelength-division multiplexing (WDM)
Yes
show more


Tx power (min)
-9 dBmW
show more


Tx power (max)
-3 dBmW
show more

Features

Internal
Internal
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber optic connector
Fiber optic connector
SC
show more

Power

Input voltage
Input voltage
5 V
show more


Input current
2 A
show more


Power consumption (typical)
Power consumption (typical)
4.6 W
show more

Weight & dimensions

Width
Width
94 mm
show more


Depth
Depth
70 mm
show more


Height
Height
26 mm
show more


Weight
Weight
200 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
FCC, CE
show more

Logistics data

Harmonized System (HS) code
85176990
