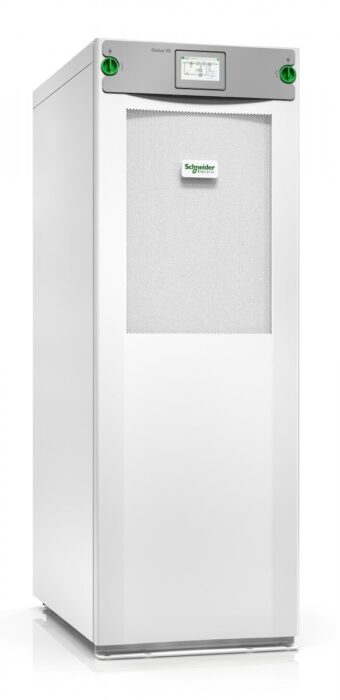

APC Galaxy VS UPS 20kW 400V External Batteries GVSUPS20KHS

The APC GVSUPS20KHS is a double-conversion (online) UPS with an output power capacity of 20 kVA and an output power of 20,000 watts. It has a tower form factor and comes in a white color, featuring an LCD display for easy monitoring. This UPS is certified by CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, and FCC Part 15 Class A. The dimensions of the UPS are 521 mm in width, 847 mm in depth, and 1485 mm in height. It comes packaged with dimensions of 640 mm in width, 990 mm in depth, and 1680 mm in height.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
20 kVA
show more


Output power
Output power
20000 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
340 V
show more


Input operation voltage (max)
Input operation voltage (max)
460 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
380 V
show more


Output operation voltage (max)
Output operation voltage (max)
415 V
show more


Output frequency
50/60 Hz
show more


Maximum current
Maximum current
37 A
show more


Number of input phases
3
show more


Number of output phases
3
show more


Efficiency
96.9%
show more


Input power factor
0.99
show more


Crest factor
2.5:1
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Noise level
Noise level
65 dB
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
show more

Design

Form factor
Form factor
Tower
show more


Product colour
Product colour
White
show more

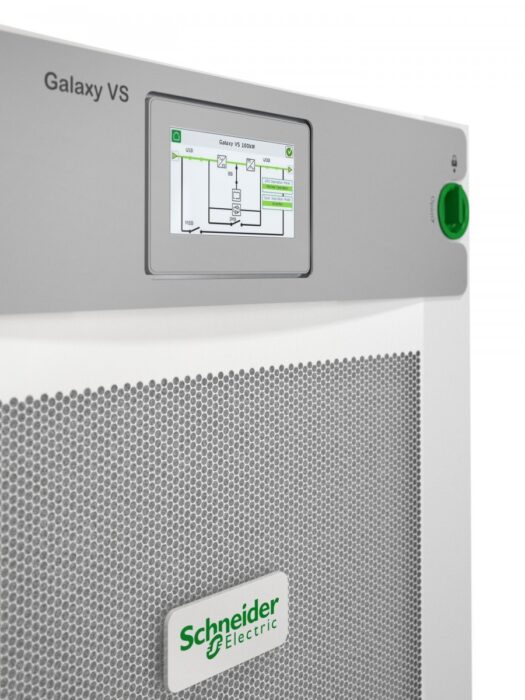

Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP21
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 55 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
10 – 80%
show more


Operating altitude
0 – 984.3 m
show more


Non-operating altitude
0 – 15000 m
show more

Certificates

Certification
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
show more

Weight & dimensions

Width
Width
521 mm
show more


Depth
Depth
847 mm
show more


Height
Height
1485 mm
show more


Weight
Weight
210 kg
show more

Packaging data

Package width
Package width
640 mm
show more


Package depth
Package depth
990 mm
show more


Package height
Package height
1680 mm
show more


Package weight
Package weight
235 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Input connection type
Input connection type
4-wire (3PH + G), 5-wire (3PH + N + G)
show more


Nominal input voltage
Nominal input voltage
400 V
show more


Nominal output voltage
Nominal output voltage
400 V
show more
