Set Hybrid 10kW with Inverter GW10K-ET PLUS and GoodWe LYNX HV 13.10 kWh Energy Storage, including 23 Jinko N-type 445Wp panels

The Hybrid Set, with a total power capacity of 10.35 kWp, features JINKO 445Wp N-type solar modules, a GoodWe GW10K-ET PLUS Hybrid Inverter, and GoodWe LYNX HV F13.1-H PLUS energy storage system.

Specifications for the set include:

– GW10K-ET PLUS Hybrid Inverter (3-phase)
– Provides backup power functionality
– Rapid switchover to emergency power with a transfer time of less than 10 milliseconds
– Compatible with smart home systems
– Includes two MPPT strings for efficient solar tracking
– Wi-Fi communication feature for easy connectivity
– Comes with a 5-year product warranty

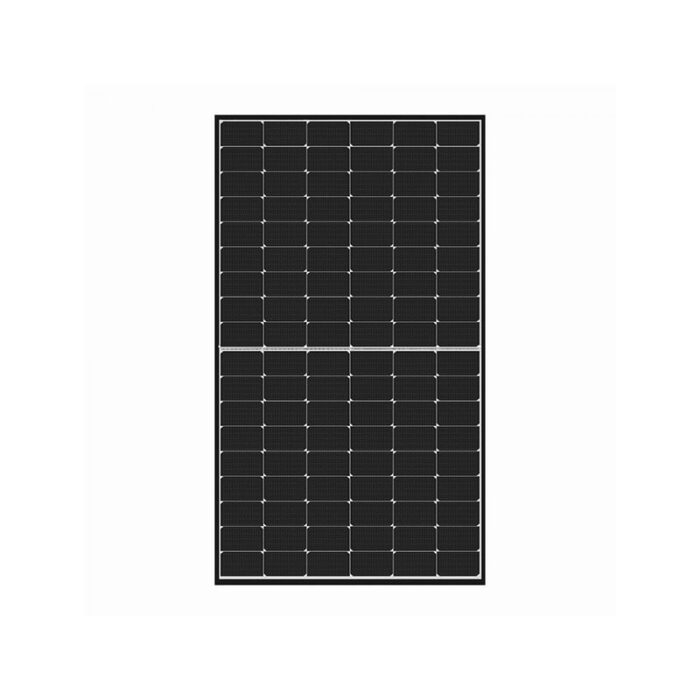

– 23 JINKO JKM445N-54HL4R-V-F5_JK03M Photovoltaic Modules
– Manufactured by a leading global solar module producer
– Utilizes the latest N-type silicon technology
– Offers a high module efficiency of 22.27%
– Performs well under low light conditions
– Features an aesthetic black frame with a white backsheet
– Highly resistant to salt mist and ammonia
– Compact dimensions measuring 1762x1134x30mm
– Backed by a 15-year product warranty and a 30-year performance warranty

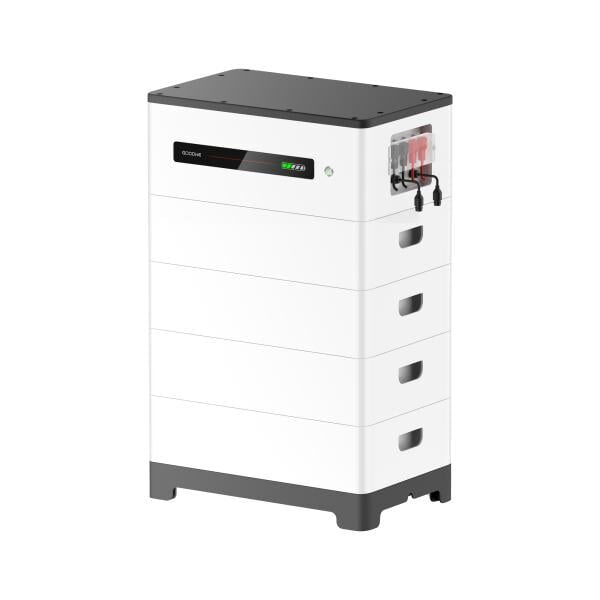

– GoodWe Lynx Home F PLUS+ 13.10 kWh Energy Storage
– Provides maximum backup power capability
– Adheres to the highest safety standards
– Designed for intelligent and efficient operation
– High battery cycle lifespan ensures longevity
– Allows for connection of up to 8 towers in parallel, for a total storage capacity of 131kWh
– Utilizes reliable LFP cells
– Remote diagnostics and updates available via the inverter

– Includes a GM3000 energy meter with the inverter
