Set Hybrid 10kW with Inverter GW10K-ET PLUS, Energy Storage GoodWe LYNX HV 13.10 kWh, and 18x Jinko Bifacial 575Wp

Hybrid Set 10 kWp combines JASolar 575Wp modules, a GoodWe GW10K-ET PLUS Hybrid Inverter, and GoodWe LYNX HV F13.1-H PLUS energy storage for an efficient solar energy solution.

Set Specifications:

The Hybrid Inverter GW10K-ET PLUS is a 3-phase device that includes a backup power function and a fast-switching emergency power UPS that activates in less than 10 milliseconds. It supports integration with smart home systems, has two MPPT strings, offers Wi-Fi communication, and comes with a 5-year product warranty.

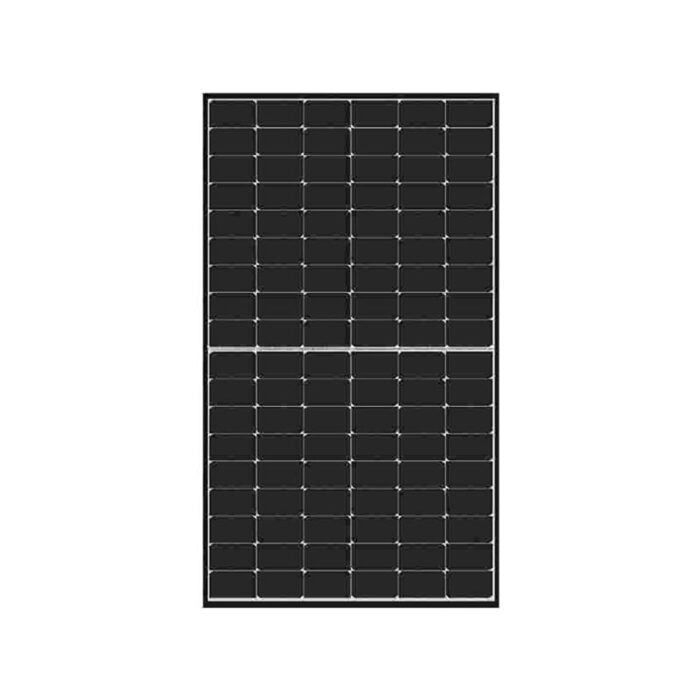

The set includes 18 JINKO JKM575N-72HL4-BDV photovoltaic modules. As a leading manufacturer of solar cells and modules, these JINKO modules employ N-Type technology to achieve a high module efficiency of 22.26% and deliver higher output power. They feature a silver frame and SMBB technology, measure 2278x1134x30 mm, and are backed by a 15-year product warranty and a 25-year performance warranty.

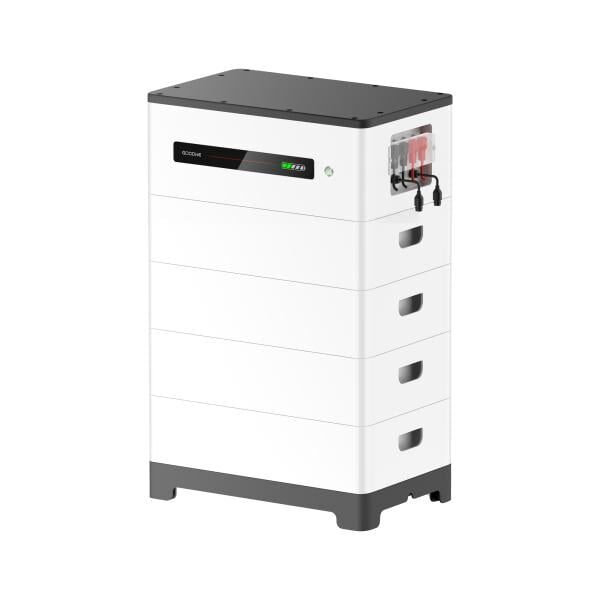

The GoodWe Lynx Home F PLUS+ offers 13.10 kWh energy storage with maximum backup power and high safety standards. It is designed for intelligent and efficient operation, ensures high battery cycle life, and allows for connecting up to 8 towers in parallel, amounting to 131kWh. It features reliable LFP cells and supports remote diagnostics and updates via the inverter.

The package includes a GM3000 energy meter, which is provided with the inverter.
