Set Hybrid 10kW with Inverter GW10K-ET PLUS and Energy Storage GoodWe LYNX HV 9.83kWh and 18x Jinko Bifacial 575Wp

Hybrid Set 10 kWp with JASolar 575Wp modules, GoodWe GW10K-ET PLUS Hybrid Inverter, and GoodWe LYNX HV F9.8-H PLUS energy storage.

Set Specification:

GW10K-ET PLUS Hybrid Inverter (3-phase):

– Features a backup power function and can switch to emergency power UPS in less than 10ms.
– Offers integration with smart home systems.
– Equipped with 2 MPPT strings and Wi-Fi communication.
– Comes with a 5-year product warranty.

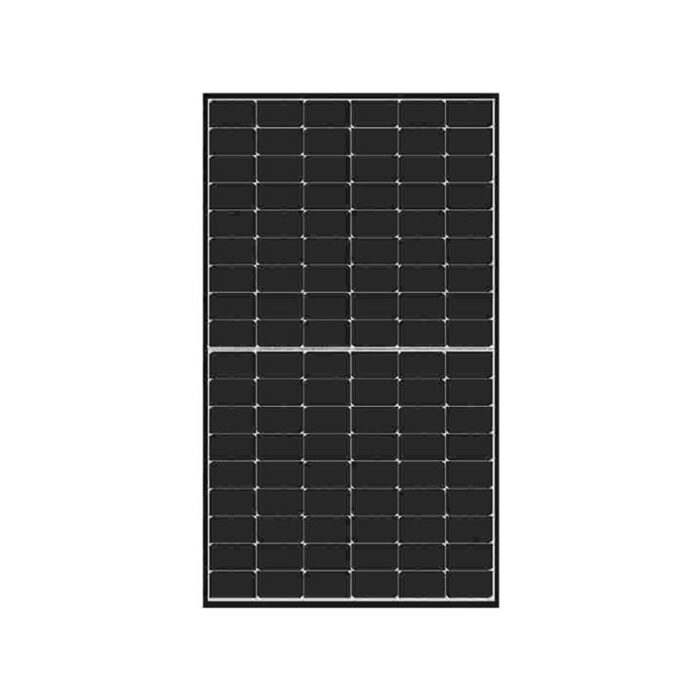

Photovoltaic Modules – 18 units of JINKO JKM575N-72HL4-BDV:

– Made by a leading manufacturer of solar cells and modules.
– Utilizes N-Type technology.
– Offers a module efficiency of 22.26%, providing higher output power.
– Features a silver frame and SMBB technology.
– Dimensions: 2278x1134x30mm.
– Comes with a 15-year product warranty and a 25-year performance warranty.

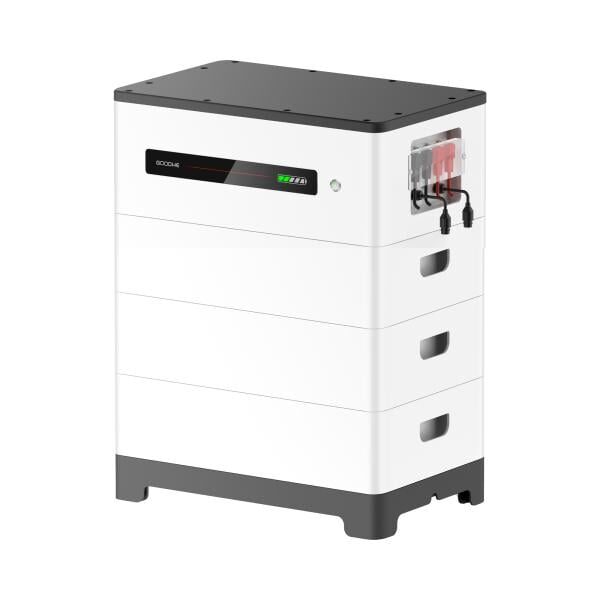

GoodWe Lynx Home F PLUS+ 9.83 kWh Energy Storage:

– Provides maximum backup power and adheres to the highest safety standards.
– Ensures smart and efficient operation with a high battery cycle lifespan.
– Allows connection of up to 8 towers in parallel, achieving up to 131kWh capacity.
– Uses reliable LFP cells and supports remote diagnosis and updates via the inverter.

GM3000 Energy Meter (included with the inverter).
