Set Hybrid 15kW + Inverter GW15K-ET_WIFI/LAN-20 + Energy Storage GoodWe LYNX HV 13.10 kWh + 26x Jinko Bifacial 575Wp

This product is a Hybrid Set with a power capacity of 15 kWp, featuring JASolar 575Wp modules, a GoodWe GW15K-ET Hybrid Inverter, and a GoodWe LYNX HV F13.1-H PLUS energy storage system.

Set Specifications:

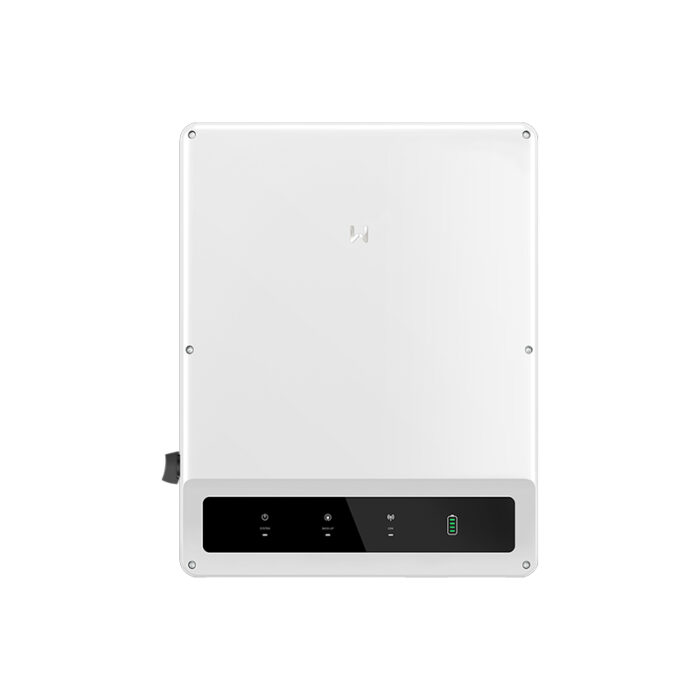

– The GW15K-ET hybrid inverter is a 3-phase model that offers several features. It includes a backup power function, the capability to switch to emergency power in less than 10 milliseconds, and can reduce peak loads through peak-shaving. It also supports high momentary overload capability in emergency power mode, offers 2 MPPT strings, and communicates via Wi-Fi. The product is backed by a 5-year warranty.

– The photovoltaic part of the set includes 26 JINKO JKM575N-72HL4-BDV modules. Jinko is a leading manufacturer known for photovoltaic cells and modules, utilizing N-Type technology. The modules have an efficiency rate of 22.26% and deliver higher output power. They come with a silver frame and employ SMBB technology. Each module measures 2278x1134x30mm and is covered by a 15-year product warranty and a 25-year performance warranty.

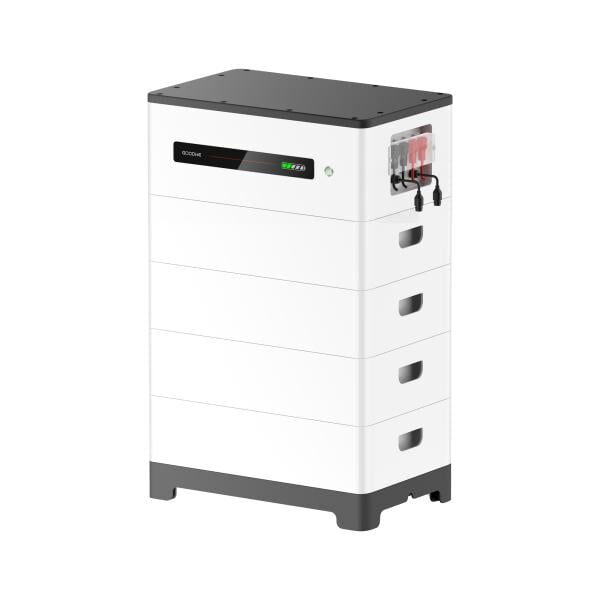

– The energy storage solution is the GoodWe Lynx Home F PLUS+, providing 13.10 kWh of capacity. It delivers maximum backup power, adheres to the highest safety standards, and operates intelligently and efficiently with a high battery cycle lifespan. This storage system can connect up to 8 towers parallelly, reaching a total capacity of 131kWh. It uses reliable LFP cells and allows remote diagnosis and updates via the inverter.

– A GM3000 energy meter is included with the inverter for comprehensive energy management.
