Set Hybrid 20kW with Inverter GW20K-ET_WIFI/LAN-20, Energy Storage GoodWe LYNX HV 13.10 kWh, and 45 Jinko N-type 445Wp Panels

Hybrid Set 20.25 kWp features JINKO 445Wp N-type modules, the GoodWe GW20K-ET Hybrid Inverter, and the GoodWe LYNX HV F13.1-H PLUS energy storage system.

Set Specifications:

– GW20K-ET Hybrid Inverter:
– 3-phase operation
– Features a backup power function
– Switches to emergency power UPS in less than 10 milliseconds
– Offers peak shaving to reduce peak loads
– High instantaneous overload capability in emergency power mode
– Includes 2 MPPT chains
– Wi-Fi communication enabled
– Comes with a 5-year product warranty

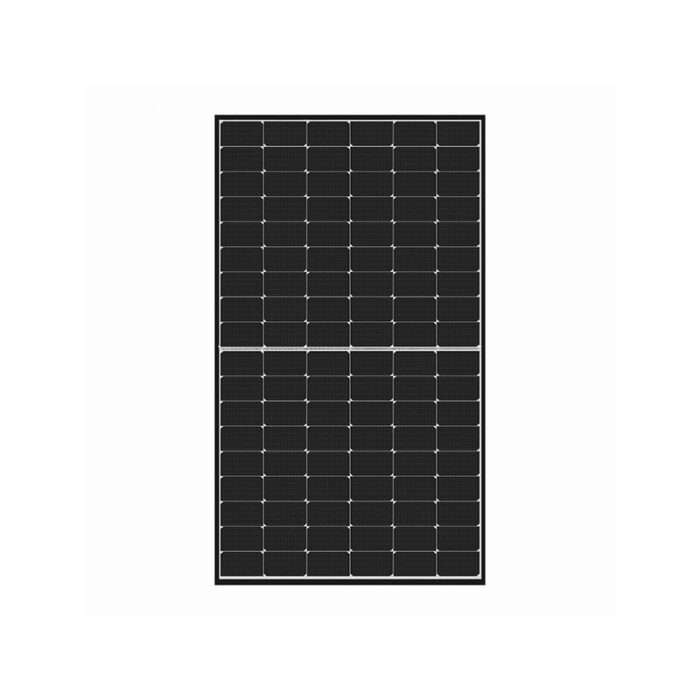

– Photovoltaic Modules (45 Units of JINKO JKM445N-54HL4R-V-F5_JK03M):
– A leading brand among global module manufacturers
– Incorporates the latest N-type silicon technology
– Achieves module efficiency of 22.27%
– Provides high performance in low light conditions
– Features an aesthetic black frame and white backsheet
– High resistance to salt mist and ammonia
– Compact dimensions measuring 1762x1134x30mm
– Comes with a 15-year product warranty and a 30-year performance warranty

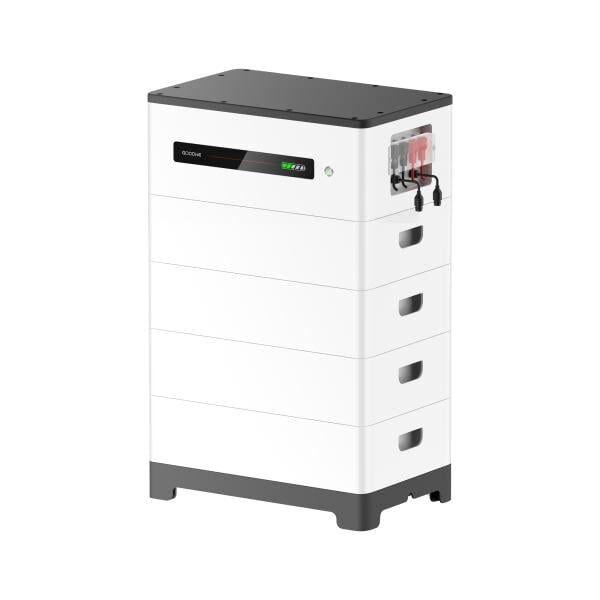

– GoodWe Lynx Home F PLUS+ Energy Storage 13.10 kWh:
– Provides maximum backup power
– Meets the highest safety standards
– Offers intelligent and efficient operation
– Possesses a high battery cycle lifespan
– Capable of connecting up to 8 towers in parallel, totaling up to 131kWh of storage
– Utilizes reliable LFP cells
– Supports remote diagnosis and updates via the inverter

– Energy Meter GM3000 is included with the inverter.
