Set Hybrid 20kW + Inverter GW20K-ET_WIFI/LAN-20 + Energy Storage GoodWe LYNX HV 9.83kWh + 35x Jinko Bifacial 575Wp

Introducing the Hybrid Set 20 kWp, featuring JASolar 575Wp modules, a GoodWe GW20K-ET Hybrid Inverter, and GoodWe LYNX HV F9.8-H PLUS energy storage.

Set Specification:

1. GoodWe GW20K-ET Hybrid Inverter (3-phase):
– Includes backup power function.
– Quickly switches to emergency power with UPS in less than 10ms.
– Reduces peak loads through peak-shaving capabilities.
– Offers high transient overload capacity in emergency power mode.
– Features 2 MPPT chains for efficient power management.
– Enabled with Wi-Fi communication for easy access and monitoring.
– Comes with a 5-year product warranty.

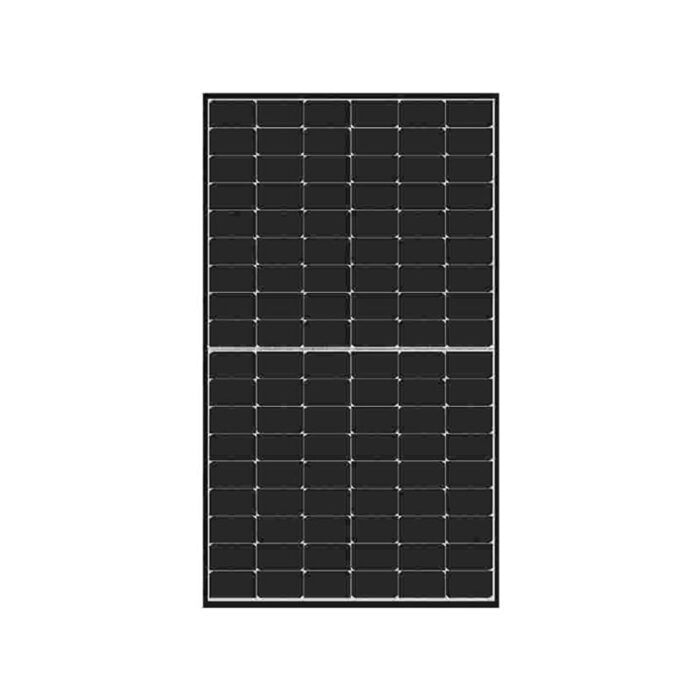

2. Photovoltaic Modules (35x JINKO JKM575N-72HL4-BDV):
– Produced by a leading manufacturer of solar cells and modules.
– Utilizes advanced N-Type technology.
– Achieves a module efficiency rate of 22.26%.
– Designed to deliver higher output power.
– Equipped with a silver frame for durability.
– Incorporates SMBB technology for enhanced performance.
– Dimensions are 2278x1134x30mm.
– Supported by a 15-year product warranty and a 25-year performance warranty.

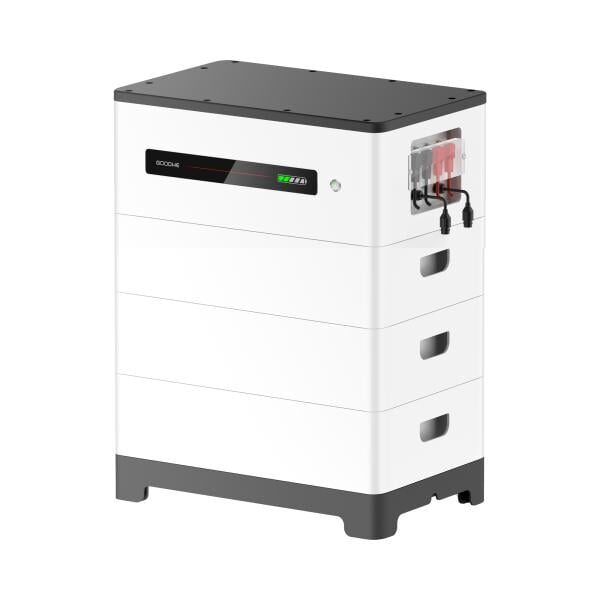

3. GoodWe Lynx Home F PLUS+ Energy Storage (9.83 kWh):
– Provides maximum backup power for your needs.
– Adheres to the highest safety standards.
– Ensures smart and efficient operation throughout its lifespan.
– Possesses a high battery cycle lifespan for prolonged use.
– Offers the ability to connect up to 8 towers in parallel, totaling 131kWh.
– Equipped with reliable LFP cells for safety and efficiency.
– Features remote diagnosis and updates via the inverter for easy management.

4. Energy Meter GM3000:
– Included with the inverter for comprehensive energy monitoring.
