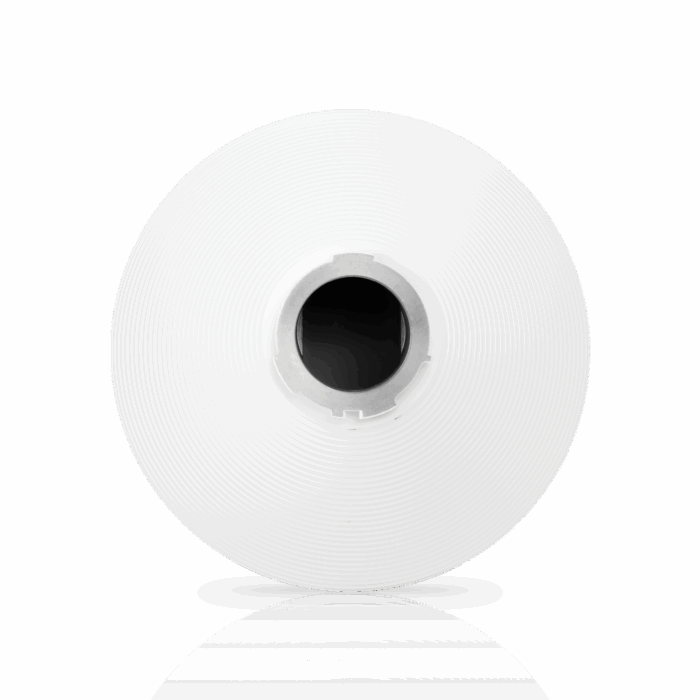

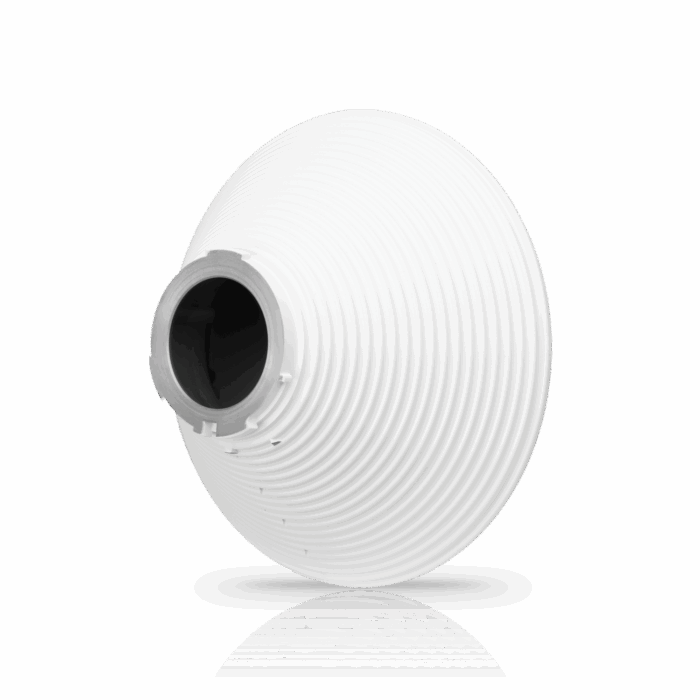

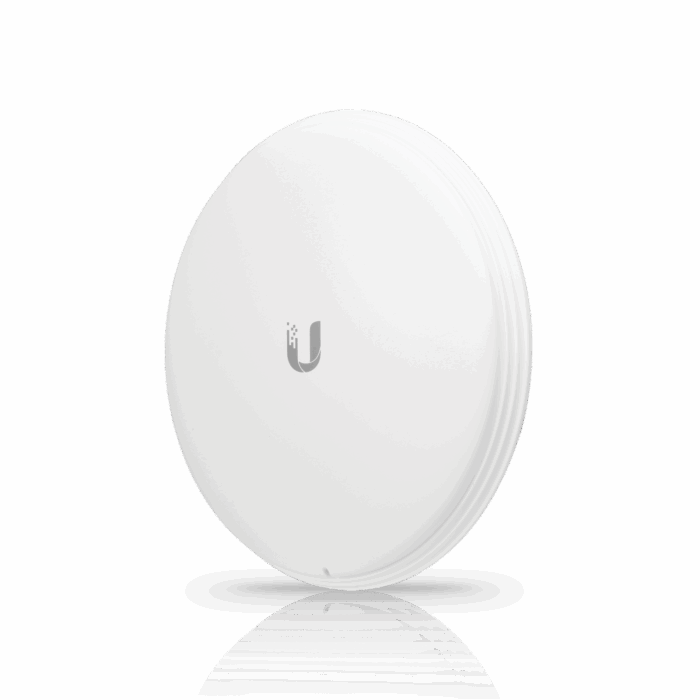

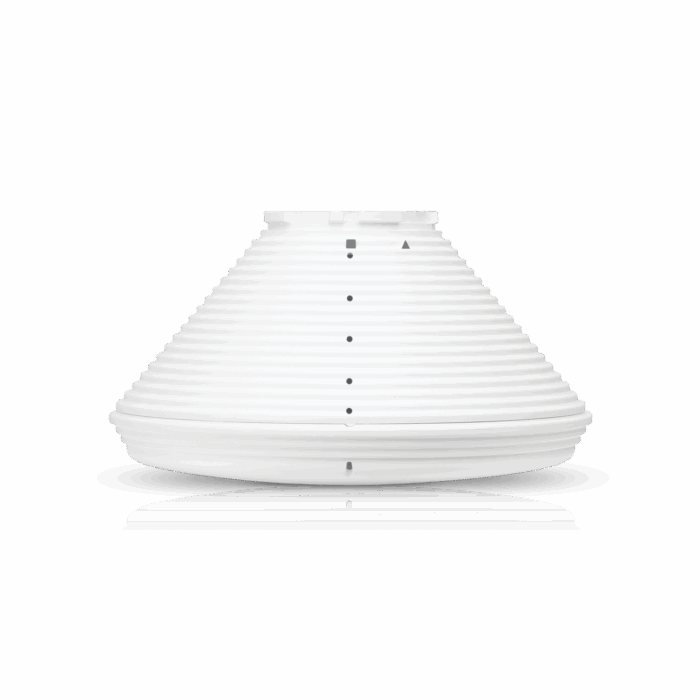

Ubiquiti Networks HORN-5-60 Network Antenna, Horn Antenna 16 dBi

The Ubiquiti Networks HORN-5-60 is a 16 dBi horn antenna operating in the 5.15 – 5.85 GHz frequency range with a 60° beamwidth. This dual polarization antenna is designed with interchangeable horn components to enhance beam-shaping for various deployment and environmental requirements.

This 5 GHz horn antenna offers a selection of beamwidths and interchangeable isolation antennas that deliver high-performance beam patterns. These are particularly suitable for various deployment scenarios. When used with airFiber LTU and airMAX radios, they provide excellent co-location performance without compromising on gain.

The modular design of these isolation antennas ensures high-performance beam patterns tailored for demanding deployments. When paired with the PrismStation 5AC or airFiber LTU radio, the system achieves maximum gain even with a compact footprint.

Asymmetrical horn antennas are available in 60° and 90° versions, featuring naturally attenuated side lobes and very low back radiation, offering the best front-to-back ratio in the industry along with minimal side lobe radiation. These qualities make asymmetrical horn antennas an excellent choice for cluster sector installations that require high levels of co-location.
