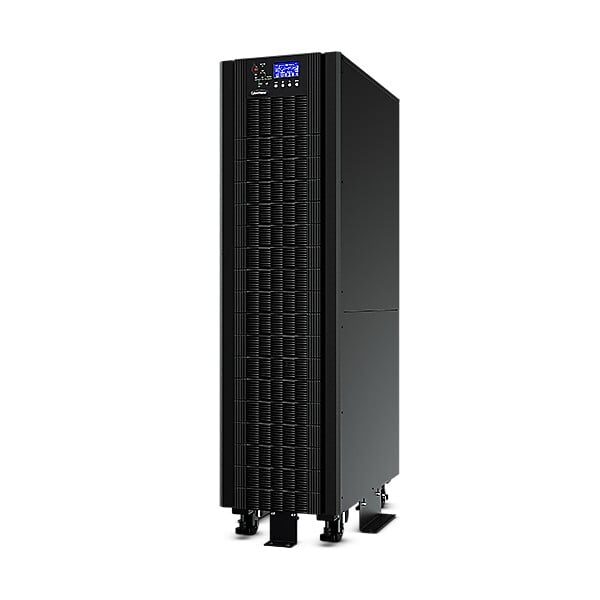

CyberPower HSTP3T20KEBCWOB Uninterruptible Power Supply (UPS) Double-Conversion (Online) 20000 VA 18000 W

The CyberPower HSTP3T20KEBCWOB is designed with a double-conversion (online) UPS topology, providing a robust power backup with an output power capacity of 20 kVA and output power of 18,000 W. It features an RS-485 serial interface for efficient communication. This unit offers a typical backup time of 7 minutes at full load and 18 minutes at half load, making it reliable during power outages. The UPS comes in a sleek tower form factor with a black finish, constructed from durable metal housing. It meets various certifications, including CE, IEC62040-1, and IEC62040-2, ensuring compliance with industry standards.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
20 kVA
show more


Output power
Output power
18000 W
show more


Waveform
Pure sine
show more


Input operation voltage (min)
Input operation voltage (min)
220 V
show more


Input operation voltage (max)
Input operation voltage (max)
415 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
415 V
show more


Efficiency
95%
show more


Efficiency (ECO mode)
98%
show more


Efficiency (Battery mode)
95%
show more


Power factor
0.9
show more


Input power factor
0.99
show more


Power Factor Correction (PFC) type
Active
show more


Crest factor
3:1
show more


ECO mode
Yes
show more


Total Harmonic Distortion (THD) (linear load)
1%
show more


Total Harmonic Distortion (THD) (non-linear load)
5.5%
show more


EMI/RFI noise filtering
Yes
show more


Noise level
Noise level
58 dB
show more


Power protection features
Power protection features
Overload
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Audible alarm modes
Fault, Low battery alarm, Overload alarm
show more


Maximum number of paralleling UPSs
4
show more

Ports & interfaces

Serial interface
Yes
show more


Serial interface type
RS-485
show more


RS-232 ports
RS-232 ports
1
show more


Emergency Power Off (EPO) connector
Yes
show more

Battery

Typical backup time at full load
Typical backup time at full load
7 min
show more


Typical backup time at half load
Typical backup time at half load
18 min
show more

Design

Housing material
Housing material
Metal
show more


Form factor
Form factor
Tower
show more


Product colour
Product colour
Black
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Certificates

Certification
CE , IEC62040-1 , IEC62040-2
show more

Weight & dimensions

Width
Width
350 mm
show more


Depth
Depth
738 mm
show more


Height
Height
1335 mm
show more


Weight
Weight
89 kg
show more

Packaging data

Package width
Package width
490 mm
show more


Package depth
Package depth
880 mm
show more


Package height
Package height
1530 mm
show more


Package volume
106000 cm³
show more

Other features

Bypass
Automatic, Manual
show more
