Hybrid 10kW Set with Huawei SUN2000-10KTL-M1-HC, 5kWh LUNA2000, and 23 Jinko N-type 445Wp panels

Hybrid Set 10.35 kWp with JINKO 445Wp N-type modules, HUAWEI 10KTL 3-phase Hybrid Inverter, and 5kWh energy storage.

Set Specifications:

HUAWEI SUN2000-10KTL-M1-HC hybrid inverter (3-phase)

– Features active arc detection protection supported by AI intelligence.
– Equipped with built-in AC and DC type II surge protectors.
– Compatible with optimisers.
– Includes 2 MPPT chains for high efficiency.
– Comes with a Wi-Fi/WLAN communication module.
– Back-Up option available with the purchase of an additional SZR switchboard.
– Designed with an aesthetic appearance.
– Covered by a 10-year product warranty.

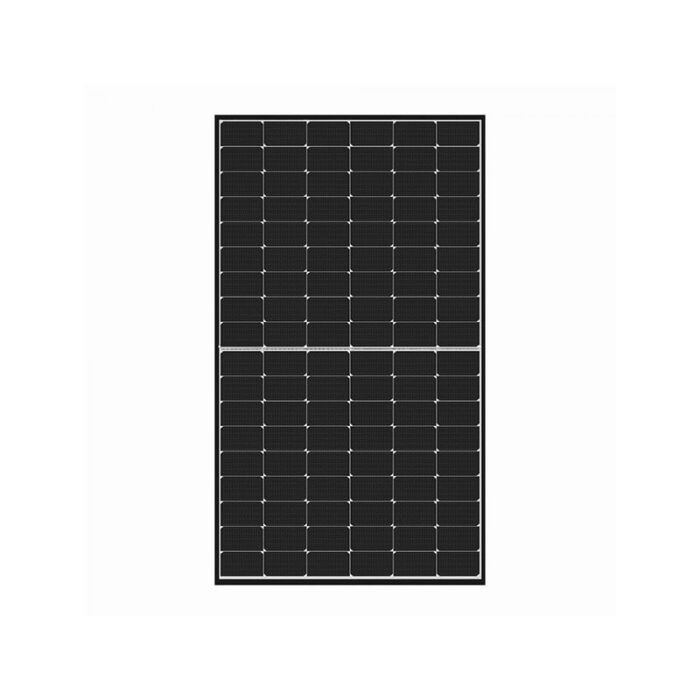

23 JINKO JKM445N-54HL4R-V-F5_JK03M photovoltaic modules:

– Manufactured by a world-leading company.
– Uses the latest N-type silicon technology.
– Module efficiency is 22.27%.
– Performs well in low light conditions.
– Features an aesthetic black frame and white backsheet.
– Resistant to salt mist and ammonia.
– Compact dimensions of 1762x1134x30mm.
– Comes with a 15-year product warranty and a 30-year performance warranty.

LUNA2000-5-S0 energy storage:

– Safety and reliability ensured by LFP cells.
– Expandable up to 6 batteries, with a maximum of 3 batteries per package.
– Facilitates quick Plug & Play installation with HUAWEI hybrid inverters.
– Controlled via an app.
– Provides 100% usable power of 5kWh.
– Comes with a 10-year warranty on product and performance.

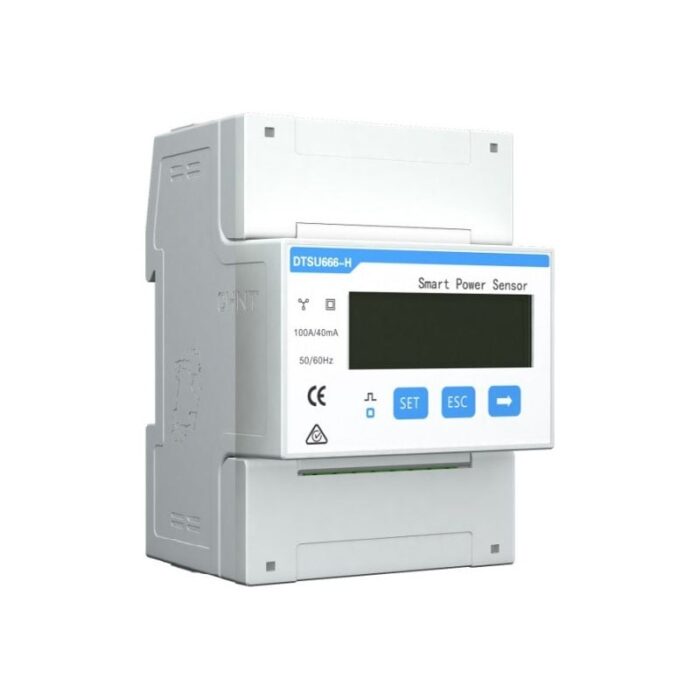

DTSU666-H energy meter:

– Compatible with HUAWEI inverters.
– Monitors energy production and consumption.
– Configurable and monitorable through an app.
– Features reliable, wired RS485 communication with the inverter.
– Includes 3 current transformers of 250A each.
– Covered by a 2-year warranty.
