Set Hybrid 15kW with Huawei SUN2000-15K-MB0, 10kWh LUNA2000, and 34x Jinko N-type 445Wp

Hybrid Set 15.3 kWp with JINKO 445Wp N-type modules, HUAWEI 15KTL 3-phase Hybrid Inverter, and a 15kWh energy storage system.

Set Specification:

1. HUAWEI SUN2000-15KTL-MB0 Hybrid Inverter (3-phase)
– Features active arc fault protection supported by AI intelligence.
– Includes built-in Type II AC and DC surge protectors.
– Compatible with optimisers and offers 2 MPPT strings for high efficiency.
– Comes with a Wi-Fi/WLAN communication module.
– Offers backup capability with the purchase of an additional SZR distribution board.
– Aesthetically designed.
– Covered by a 10-year product warranty.

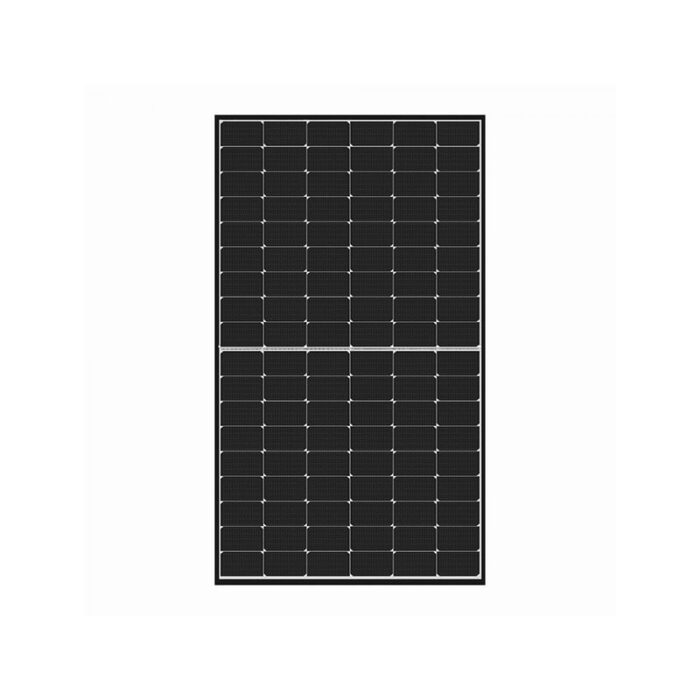

2. Photovoltaic Modules: 34x JINKO JKM445N-54HL4R-V-F5_JK03M
– A leader among module manufacturers worldwide.
– Utilizes the latest N-type silicon technology for improved performance.
– Has a module efficiency of 22.27% and performs well in low light conditions.
– Features an aesthetic black frame and white backsheet.
– Offers high resistance to salt mist and ammonia.
– Compact dimensions of 1762x1134x30mm.
– Includes a 15-year product warranty and a 30-year performance guarantee.

3. Energy Storage LUNA2000-15-S0
– Offers safety and reliability with LFP cells.
– Expandable up to 6 batteries in total, with a maximum of 3 batteries in one package.
– Quick Plug & Play installation with HUAWEI hybrid inverters.
– Allows control via an app, with 100% usable power of 10kWh.
– Includes a 10-year warranty on product and performance.

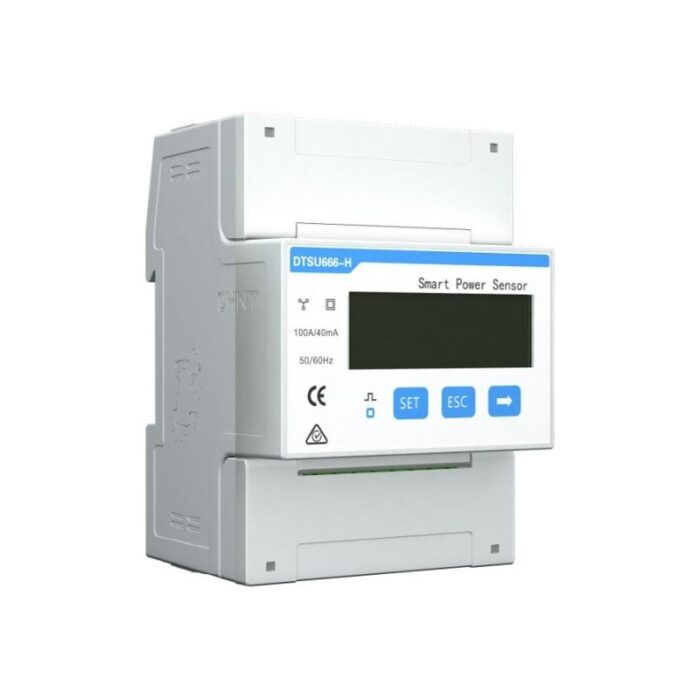

4. Energy Meter DTSU666-H
– Compatible with HUAWEI inverters.
– Enables monitoring of energy production and consumption.
– Configuration and monitoring can be done via an app.
– Provides reliable wired RS485 communication with the inverter.
– Comes with 3 current transformers rated at 250A and a 2-year warranty.
