Set Hybrid 20kW + Huawei SUN2000-20K-MB0 + 15kWh LUNA2000 + 45x Jinko N-type 445Wp

Hybrid Set 20.25 kWp comes equipped with JINKO 445Wp N-type modules, a HUAWEI 20KTL 3-phase Hybrid Inverter, and a 15kWh energy storage system.

Specifications:

1. HUAWEI SUN2000-20KTL-MB0 Hybrid Inverter (3-phase):
– Active protection against electric arcs with AI intelligence
– Built-in AC and DC surge protectors type II
– Compatible with optimizers
– Includes 2 MPPT strings
– High system efficiency
– Wi-Fi/WLAN communication module included
– Back-Up capability available with additional SZR distribution board
– Aesthetic design
– 10-year product warranty

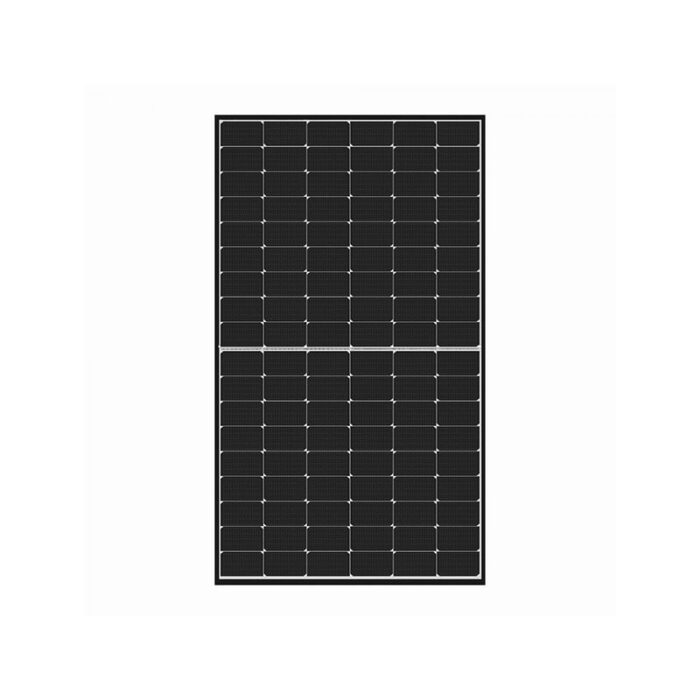

2. Photovoltaic Modules (45x JINKO JKM445N-54HL4R-V-F5_JK03M):
– Leader among global module manufacturers
– Latest N-type silicon technology
– Module efficiency at 22.27%
– High performance under low light conditions
– Aesthetic black frame and white backsheet
– High resistance to salt mist and ammonia
– Compact dimensions: 1762x1134x30mm
– 15-year product warranty and 30-year performance warranty

3. Energy Storage LUNA2000-15-S0:
– Safety and reliability with LFP cells
– Expandable up to 6 batteries in total (up to 3 batteries in one package)
– Quick Plug-and-Play installation with HUAWEI hybrid inverters
– App-controlled operation
– 100% usable power of 10kWh
– 10-year warranty on product and performance

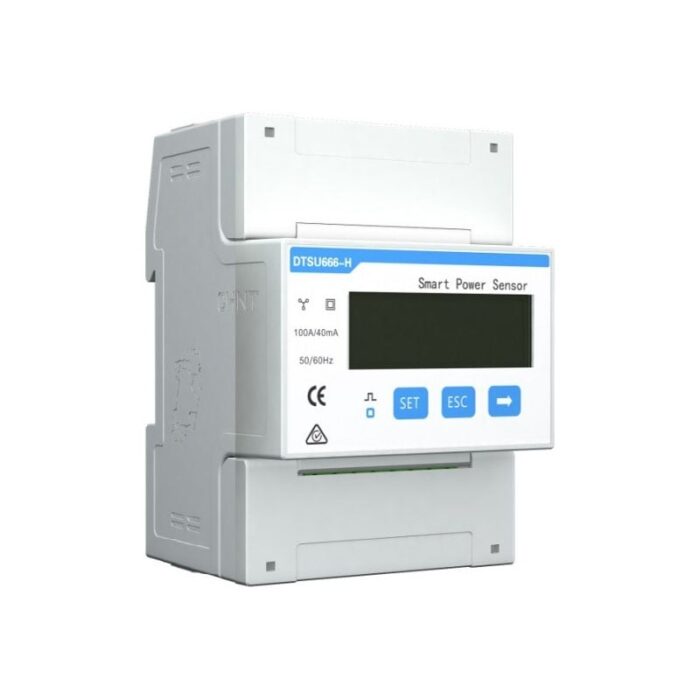

4. Energy Meter DTSU666-H:
– Compatible with HUAWEI inverters
– Displays energy production and consumption
– Configuration and monitoring via app
– Reliable wired RS485 communication with the inverter
– Includes 3 current transformers (250A)
– 2-year warranty
