Set Hybrid 20kW with Huawei SUN2000-20K-MB0, 15kWh LUNA2000, and 35x Jinko Bifacial 575Wp

Hybrid Set 20 kWp featuring JINKO 575 Wp Bifacial Modules, a HUAWEI 20KTL Hybrid Inverter with three-phase functionality, and a 15 kWh energy storage system.

Set Specification:

The HUAWEI SUN2000-20KTL-MB0 hybrid inverter offers:

– Active arc protection enhanced by AI intelligence
– Built-in Type II AC and DC surge protectors
– Compatibility with optimizers
– Two MPPT strings for optimized performance
– High system efficiency
– Inclusive of a Wi-Fi/WLAN communication module
– Back-Up capability available with an optional SZR distribution board
– Modern aesthetic design
– 10-year warranty on the product

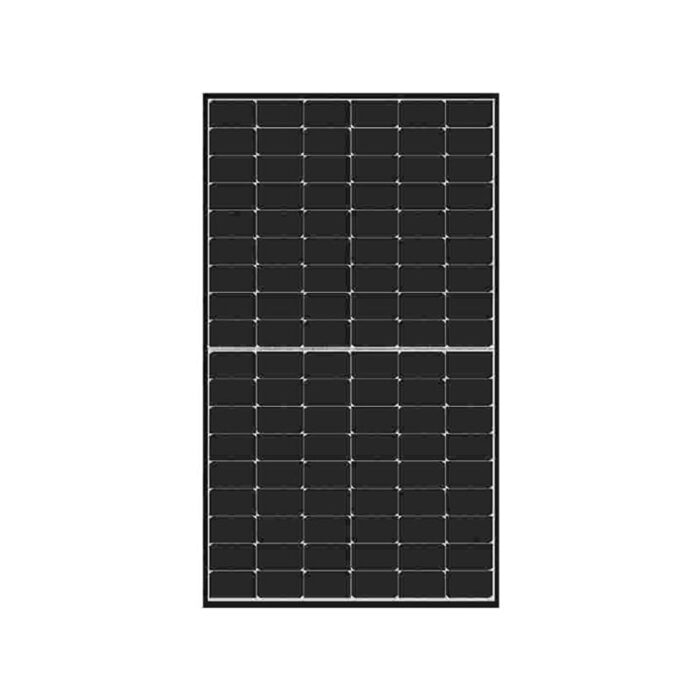

Photovoltaic modules from JINKO include 35 units of JKM575N-72HL4-BDV:

– Produced by a leading manufacturer of photovoltaic cells and modules
– N-Type technology for superior performance
– Module efficiency rated at 22.26%
– Enhanced output power
– Silver frame construction
– SMBB technology integration
– Dimensions measuring 2278x1134x30 mm
– Product warranty of 15 years and a 25-year warranty on output

The LUNA2000-15-S0 energy storage system features:

– Safety and reliability with LFP cells
– Expandable to a total of six battery units (with a maximum of three units in one package)
– Quick and easy Plug&Play installation with HUAWEI hybrid inverters
– App-based control system
– Delivers 100% usable power at 10 kWh
– 10-year warranty covering the product and output

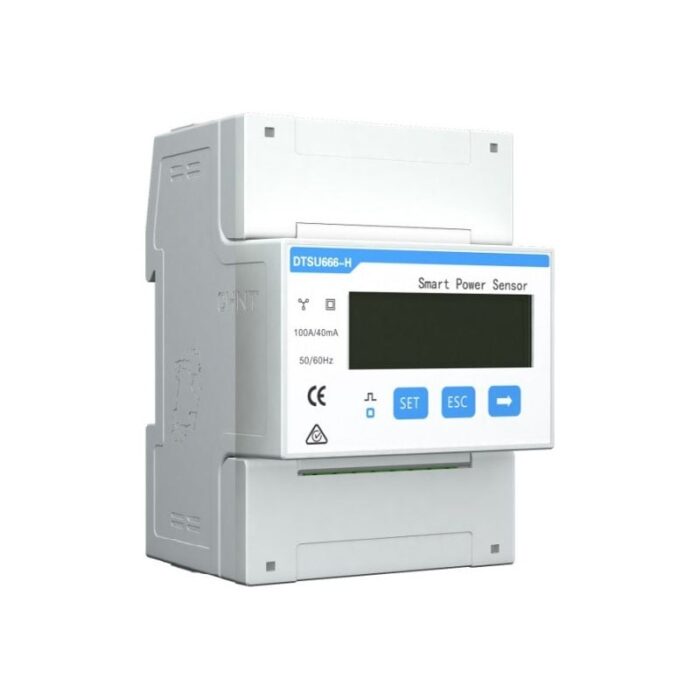

DTSU666-H energy meter:

– Fully compatible with HUAWEI inverters
– Provides insight into energy production and consumption
– Configurable and monitorable through an app
– Reliable connection using wired RS485 communication with the inverter
– Comes with three 250A current transformers
– 2-year warranty provided
