Set Hybrid 8kW with Huawei SUN2000-8KTL-M1-HC, 10kWh LUNA2000, and 18x Jinko N-type 445Wp

Hybrid Set 8.1 kWp featuring JINKO 445Wp N-type modules, a HUAWEI 8KTL three-phase Hybrid Inverter, and a 10kWh energy storage system.

Set Specifications:

1. HUAWEI SUN2000-8KTL-M1-HC Hybrid Inverter (Three-Phase):
– Active protection against electric arcs with AI intelligence support.
– Equipped with built-in AC and DC type II surge protectors.
– Capable of connecting optimizers.
– Features 2 MPPT strings.
– Provides high efficiency for the systems.
– Comes with a Wi-Fi/WLAN communication module.
– Offers a backup option with an additional SZR switchboard.
– Designed with an aesthetic appearance.
– Includes a 10-year product warranty.

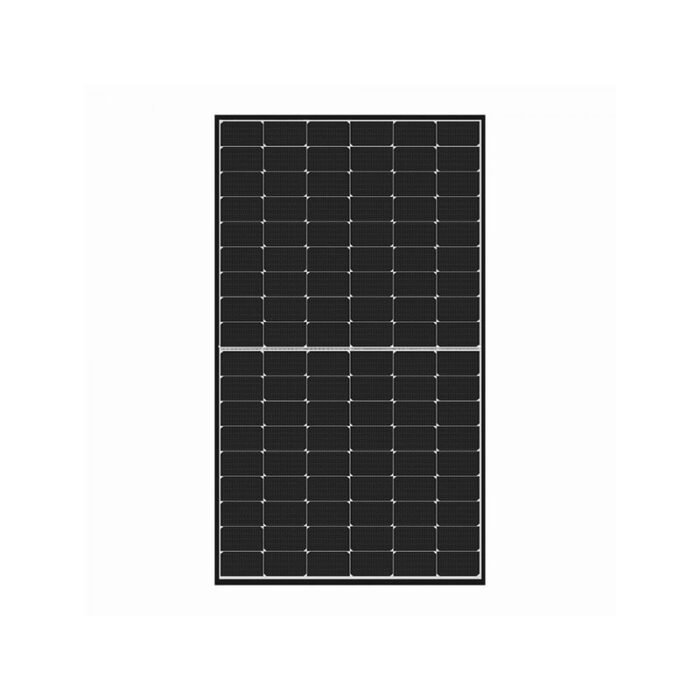

2. Photovoltaic Modules (18x JINKO JKM445N-54HL4R-V-F5_JK03M):
– Recognized as a leading module manufacturer globally.
– Utilizes the latest N-type silicon technology.
– Achieves a module efficiency of 22.27%.
– High performance in low light conditions.
– Features an aesthetic black frame and white backsheet.
– Offers high resistance to salt mist and ammonia.
– Compact dimensions are 1762x1134x30mm.
– Provides a 15-year product warranty and a 30-year performance guarantee.

3. LUNA2000-10-S0 Energy Storage:
– Ensures safety and reliability with LFP cells.
– Expandable to a total of 6 batteries (maximum of 3 batteries per package).
– Allows quick Plug&Play installation with HUAWEI hybrid inverters.
– Can be controlled via an app.
– Provides 100% usable power of 10kWh.
– Offers a 10-year warranty on product and performance.

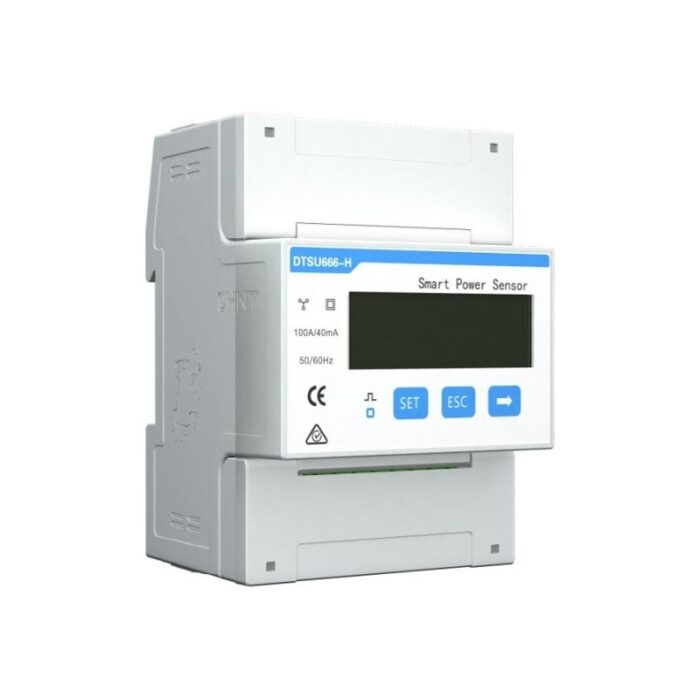

4. DTSU666-H Energy Meter:
– Compatible with HUAWEI inverters.
– Provides an overview of energy production and consumption.
– Configurable and monitored via an app.
– Reliable, wired RS485 communication with the inverter.
– Includes 3 current transformers rated at 250A.
– Comes with a 2-year warranty.
