Hybrid Set 8kW with Huawei SUN2000-8KTL-M1-HC, 10kWh LUNA2000, and 14x Jinko Bifacial 575Wp

Hybrid Set 8 kWp features JINKO 575 Wp Bifacial modules, a HUAWEI 8KTL Hybrid Inverter (3-phase), and 10kWh energy storage.

Set Specifications:

– HUAWEI SUN2000-8KTL-M1-HC Hybrid Inverter:
– Offers active arc protection enhanced by AI intelligence.
– Equipped with built-in AC and DC Type II surge protectors.
– Compatible with optimisers and includes 2 MPPT strings.
– Ensures high system efficiency.
– Comes with a Wi-Fi/WLAN communication module.
– Backup option available with an additional SZR distribution board.
– Features an aesthetic design.
– Has a 10-year product warranty.

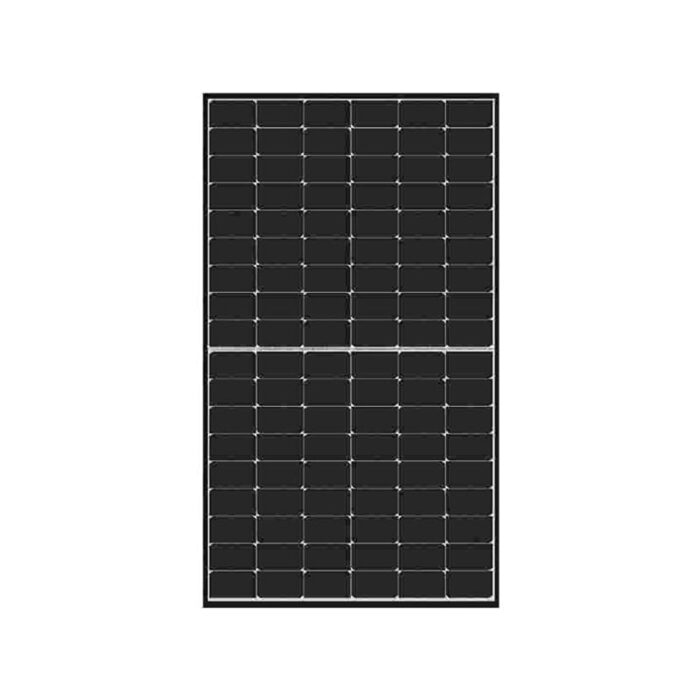

– Photovoltaic Modules (14 units of JINKO JKM575N-72HL4-BDV):
– Produced by a leading manufacturer of solar cells and modules.
– Utilise N-Type technology with module efficiency of 22.26%.
– Provide higher output power, feature a silver frame, and employ SMBB technology.
– Dimensions are 2278x1134x30mm.
– Include a 15-year product warranty and a 25-year performance warranty.

– LUNA2000-10-S0 Energy Storage:
– Ensures safety and reliability with LFP cells.
– Expandable up to 6 batteries total, with a maximum of 3 batteries per package.
– Offers quick Plug & Play installation with HUAWEI hybrid inverters.
– Provides control via an app.
– Delivers 100% usable power of 10kWh and includes a 10-year warranty on product and performance.

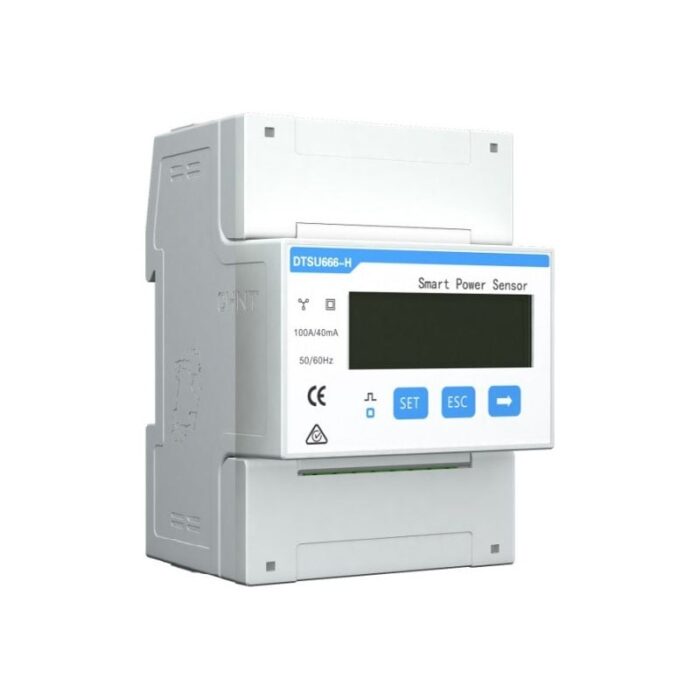

– DTSU666-H Energy Meter:
– Compatible with HUAWEI inverters.
– Allows monitoring of energy production and consumption.
– Supports configuration and monitoring via an app.
– Features reliable RS485 wired communication with the inverter.
– Includes 3 current transformers rated at 250A and comes with a 2-year warranty.
