Set Hybrid 8kW with Huawei SUN2000-8KTL-M1-HC, 5kWh LUNA2000, and 14 Jinko Bifacial 575Wp Panels

Product Description:

This hybrid set combines advanced solar technology with high efficiency and reliability. It includes 8 kWp of photovoltaic capability featuring JINKO 575 Wp bifacial modules, paired with a HUAWEI 8KTL Hybrid Inverter for three-phase power, and a 5kWh energy storage system.

Set Specifications:

1. HUAWEI SUN2000-8KTL-M1-HC Hybrid Inverter (Three-Phase):
– Offers active arc protection supported by AI intelligence
– Equipped with built-in AC and DC surge protectors (type II)
– Compatible with optimizers
– Features two MPPT strings for optimal performance
– Ensures high system efficiency
– Includes Wi-Fi/WLAN communication module
– Provides back-up capability with the purchase of an additional SZR distribution board
– Designed with an aesthetic appearance
– Comes with a 10-year product warranty

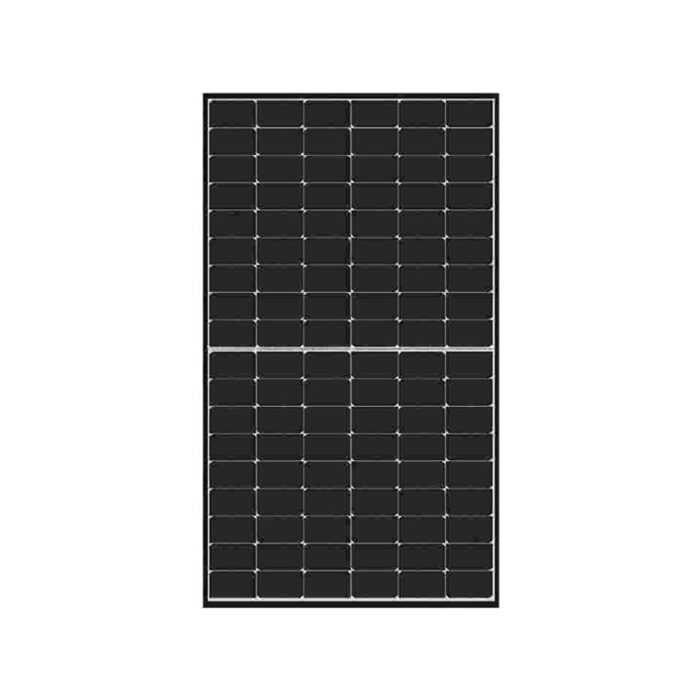

2. Photovoltaic Modules (14x JINKO JKM575N-72HL4-BDV):
– Produced by a leading manufacturer of photovoltaic cells and modules
– Utilizes N-Type technology for improved performance
– Achieves module efficiency of 22.26%
– Delivers higher output power
– Features a silver frame with SMBB technology
– Dimensions: 2278x1134x30mm
– Includes a 15-year product warranty and a 25-year performance warranty

3. LUNA2000-5-S0 Energy Storage:
– Ensures safety and reliability with LFP cells
– Expandable to a total of 6 battery units (up to 3 in a single package)
– Offers quick Plug & Play installation with HUAWEI hybrid inverters
– Can be controlled via an app
– Provides 100% usable power of 5kWh
– Comes with a 10-year warranty on both product and performance

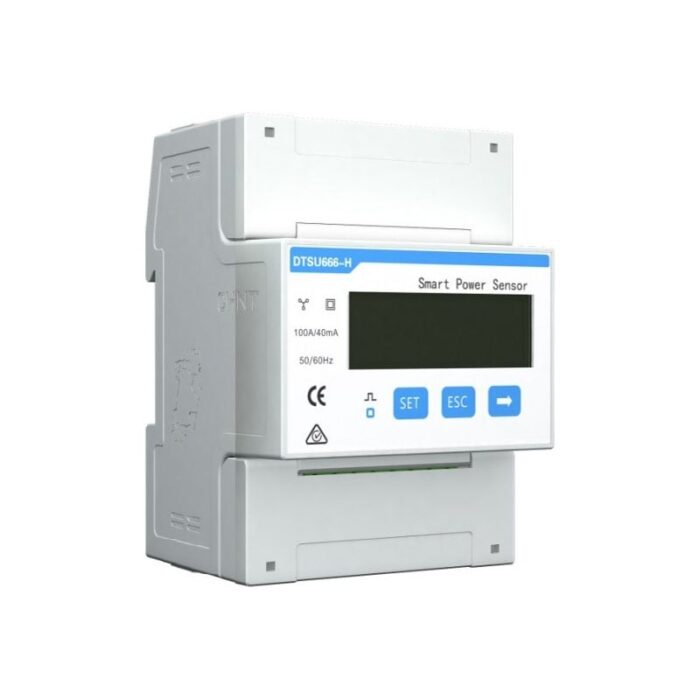

4. DTSU666-H Energy Meter:
– Compatible with HUAWEI inverters
– Provides insights into energy production and consumption
– Allows for configuration and monitoring via an app
– Features reliable wired communication (RS485) with the inverter
– Set includes 3 current transformers (250A)
– Comes with a 2-year warranty
