Planet ICG-2515FW-NR Industrial 5G NR Cellular Wireless Gateway with 1-Port 1000X SFP

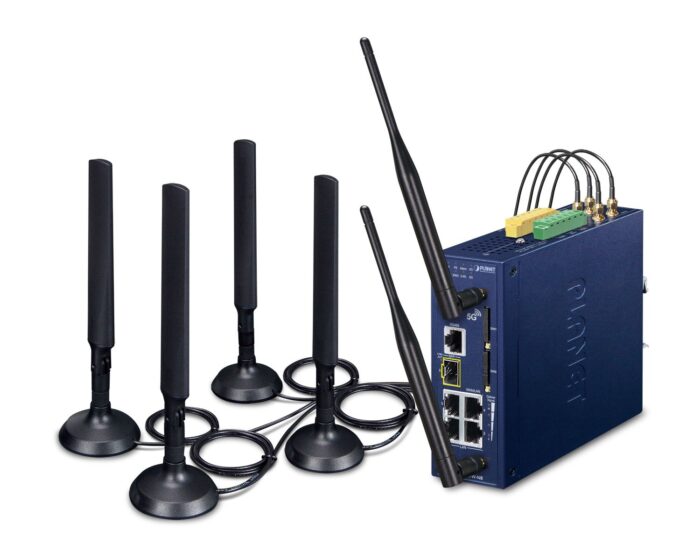

The PLANET Industrial 5G NR Cellular device comes in a blue color and features a sturdy metal enclosure. It can be mounted using either DIN-rail or wall mounting options. The device uses an external antenna with an SMA connector, offering a maximum gain level of 5 dBi. It supports a MiniSIM card and includes a console port with an RJ-45 connector, as well as a serial interface with an RJ-45 type connector. The typical power consumption of the device is 11.34 watts, with an input current of 1.5 amps and a DC input voltage range of 9 to 54 volts. The dimensions of the device are 50 mm in width, 135 mm in depth, and 135 mm in height.

Design

Product colour
Product colour
Blue
show more


Enclosure material
Metal
show more


Mounting type
Mounting type
DIN-rail/Wall mounting
show more


LED indicators
Yes
show more


Enclosure International Protection (IP) code
IP30
show more

Features

Antenna type
Antenna type
External
show more


Antenna connector type
Antenna connector type
SMA
show more


Antenna gain level (max)
Antenna gain level (max)
5 dBi
show more

Performance

Control display unit
No
show more

Ports & interfaces

SIM card slot
SIM card slot
Yes
show more


Console port
RJ-45
show more


SIM card type
MiniSIM
show more


Number of simultaneous SIM cards
2
show more


Serial interface type
RJ-45
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more

Management features

Syslog
Yes
show more


Reset button
Yes
show more


Web-based management
Web-based management
Yes
show more

Power

Power consumption (typical)
Power consumption (typical)
11.34 W
show more


Input current
1.5 A
show more


DC input voltage
9 – 54 V
show more

Weight & dimensions

Height
Height
135 mm
show more


Depth
Depth
135 mm
show more


Width
Width
50 mm
show more


Weight
Weight
900 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Certificates

Certification
CE, FCC
show more
