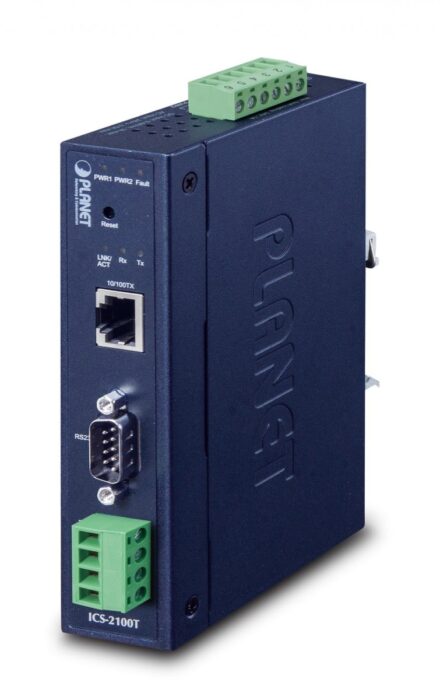

PLANET IP30 Industrial 1-Port Serial Server

The PLANET IP30 is an industrial 1-port device featuring LED indicators for the system. It weighs 392 grams and has dimensions of 32 mm in width, 87.8 mm in depth, and 135 mm in height. The product is blue in color and constructed from metal. It has an International Protection (IP) code of IP30.

Technical details

Parity bit
Even, Mark, No, Odd, Space
show more


Stop bits
1, 1.5, 2
show more


Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
show more


Data bits
5, 6, 7, 8
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Serial ports quantity
Serial ports quantity
2
show more


Certification
FCC Part 15 Class A,
CE Certification Class A
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
show more

Design

Product colour
Product colour
Blue
show more


Housing material
Housing material
Metal
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more

Weight & dimensions

Weight
Weight
392 g
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
32 x 87.8 x 135 mm
show more

Indication

LED indicators
System
show more


Link/Act LED
Yes
show more


Power LED
Yes
show more
