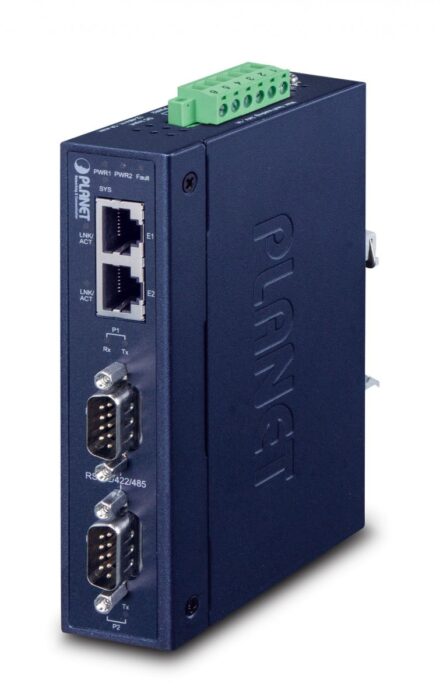

PLANET ICS-2200T Serial Server RS-232/422/485

The PLANET ICS-2200T features a cabling technology of 10/100Base-T(X) and is powered by a DC power source with an input voltage range of 12 to 48 volts. It includes LED indicators for Activity, Fault, Link, Power, and System. The device supports Windows operating systems such as Windows 10, Windows 7, Windows 8, and Windows XP, as well as server operating systems like Windows Server 2003, Windows Server 2008, and Windows Server 2012. It weighs 477 grams and its dimensions are 32 mm in width, 87.8 mm in depth, and 135 mm in height.

Technical details

Management protocols
IPv4, IPv6
show more


RS-485 signals
Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
show more


RS-422 signals
GND, RxD+, RxD-, TxD+, TxD-
show more


RS-232 signals
CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
show more


Data bits
5, 6, 7, 8
show more


Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
show more


Compliance certificates
RoHS
show more


Stop bits
1, 1.5, 2
show more


Parity bit
Even, Mark, Odd, Space
show more


Baud rate
921 Kbit/s
show more


Isolation
2 kV
show more


Serial interface type
RS-232/422/485
show more


Serial ports quantity
Serial ports quantity
2
show more


Flow control support
Yes
show more


Surge protection voltage
1 kV
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
show more


Electrostatic Discharge (ESD) protection
15 kV
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Certification
FCC 15 A, CE A
IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


Cabling technology
Cabling technology
10/100Base-T(X)
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more

Design

Product colour
Product colour
Blue
show more


Housing material
Housing material
Metal
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Weight & dimensions

Weight
Weight
477 g
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
32 x 87.8 x 135 mm
show more

Indication

LED indicators
Activity, Fault, Link, Power, System
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
12 – 48 V
show more

Software

Windows operating systems supported
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows XP
show more


Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2012
show more
