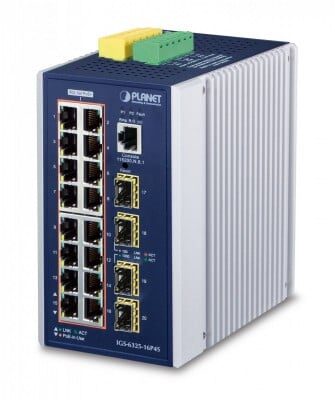

PLANET IGS-6325-16P4S Network Switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Aluminium, Blue

The PLANET IGS-6325-16P4S is a managed switch designed for Layer 3 networking applications. It features 16 Gigabit Ethernet ports with speeds of 10/100/1000 Mbps, offering robust connectivity options for various network devices. Additionally, the switch includes 4 installed SFP modules for flexible fiber optic connections. It is equipped with an RJ-45 console port for straightforward management and configuration.

The switch supports full duplex communication, allowing simultaneous two-way data transfers, and can handle a MAC address table comprising up to 16,000 entries. With a switching capacity of 52 Gbit/s, it ensures efficient data processing and traffic management.

Complying with multiple networking standards, including IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, and IEEE 802.1p, the device is well-suited for integration into complex network environments. It operates on a DC input voltage range of 48 to 56 volts and is equipped with a 3-pin terminal block power connector. The switch also supports Power over Ethernet (PoE), making it easier to power devices without additional wiring. Its design allows for wall mounting, providing flexible installation options to fit various spaces.
