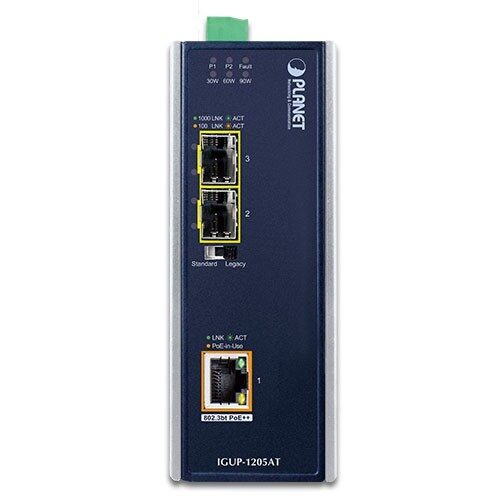

PLANET IGUP-1205AT Network Media Converter 1000 Mbit/s Multi-mode, Single-mode Blue

The PLANET IGUP-1205AT is a device designed for network data transfer, supporting a maximum transfer rate of 1000 Mbit/s. It features a converter input interface compatible with 10Base-T, 100Base-T, and 1000Base-T network technologies. The device's converter output interface includes compatibility with 1000Base-BX, 1000Base-LX, and 1000Base-SX standards. It supports both multi-mode and single-mode fiber structures and can accommodate fiber cable diameters of 9/125, 50/125, and 62.5/125 micrometers. The device has LED indicators for Fault, PoE, and System functions. It is designed with a blue metal housing and uses an SFP connector for fiber optics. The connectivity technology is wired, requiring an input voltage range of 12 to 48 volts. The device offers a total Power over Ethernet (PoE) budget of 90 watts.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
10Base-T, 100Base-T, 1000Base-T
show more


Converter output interface
1000Base-BX, 1000Base-LX, 1000Base-SX
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Flow control support
Yes
show more


Duplex system
Duplex system
Full, Half
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more

Performance

Fiber mode structure
Multi-mode, Single-mode
show more


Fiber cable diameters supported (core/cladding)
9/125,50/125,62.5/125 µm
show more

Features

DIN rail mounting
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more


Housing material
Housing material
Metal
show more


Product colour
Product colour
Blue
show more


LED indicators
Fault, PoE, System
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP
show more


Power over Ethernet (PoE) ports quantity
1
show more

Power

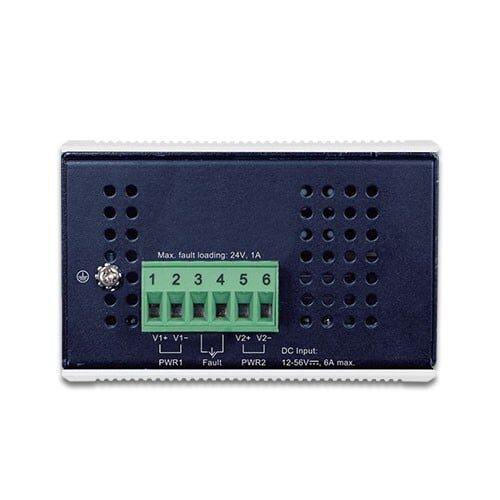

Input voltage
Input voltage
12 – 48 V
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
90 W
show more

Weight & dimensions

Width
Width
55 mm
show more


Depth
Depth
85 mm
show more


Height
Height
135 mm
show more


Weight
Weight
612 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Certificates

Certification
FCC Part 15 Class A, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
