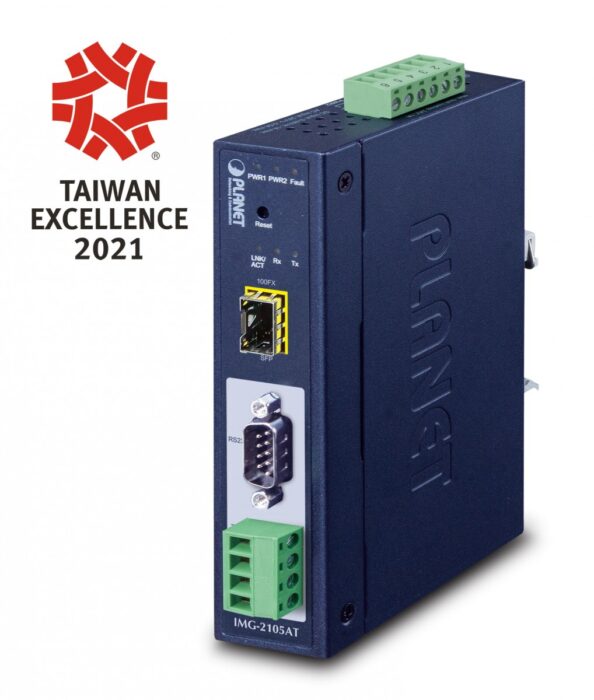

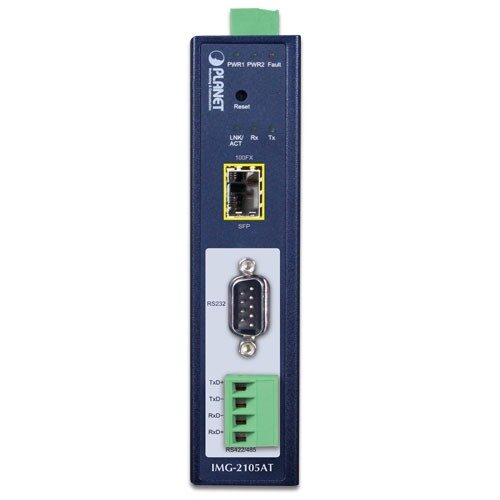

PLANET IMG-2105AT Gateway/Controller 100 Mbit/s

The PLANET IMG-2105AT is a blue device with an International Protection code of IP30, indicating a specific level of protection against solid objects. It supports Ethernet LAN data rates of 100 Mbit/s and adheres to networking standards IEEE 802.3 and IEEE 802.3u. This product is equipped with a serial interface that supports RS-232, RS-422, and RS-485. The power requirements for the device are 9 to 48 volts DC or 24 volts AC. In terms of dimensions, it has a width of 32 mm, a depth of 87.8 mm, and a height of 135 mm.

Design

Product colour
Product colour
Blue
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Performance

Control display unit
No
show more

Network

Ethernet LAN data rates
Ethernet LAN data rates
100 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u
show more

Ports & interfaces

RS-232 ports
RS-232 ports
1
show more


Serial interface type
RS-232/422/485
show more


Fixed SFP ports quantity
1
show more

Management features

Syslog
Yes
show more

Power

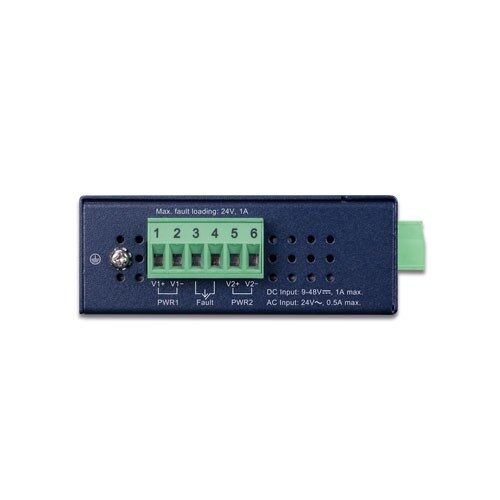

Power requirements
9〜48V DC / 24V AC
show more

Weight & dimensions

Height
Height
135 mm
show more


Depth
Depth
87.8 mm
show more


Width
Width
32 mm
show more


Weight
Weight
390 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more
