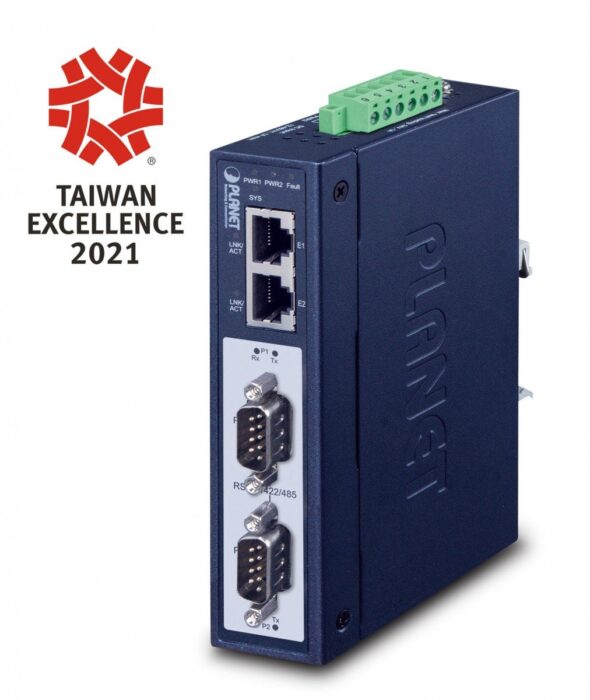

PLANET IMG-2200T Gateway/Controller 10, 100 Mbit/s

Product Name: PLANET IMG-2200T

Description: The PLANET IMG-2200T is a robust networking device with an International Protection (IP) code of IP30, ensuring reliable operation in various environments. It supports Ethernet LAN data rates of 10 and 100 Mbit/s and adheres to networking standards IEEE 802.3 and IEEE 802.3u, making it versatile for different network configurations.

For security, it incorporates SNMP and SNMPv2 algorithms, providing a secure network management protocol to monitor and control network devices effectively. The serial interface is compatible with RS-232/422/485 standards, offering flexibility in connectivity for various industrial applications.

The device's power requirements range from 12 to 48V DC, allowing for a wide range of input voltages, catering to different power supply setups.

Design

LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more

Performance

Control display unit
No
show more

Network

Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u
show more

Security

Security algorithms
Security algorithms
SNMP, SNMPv2
show more

Ports & interfaces

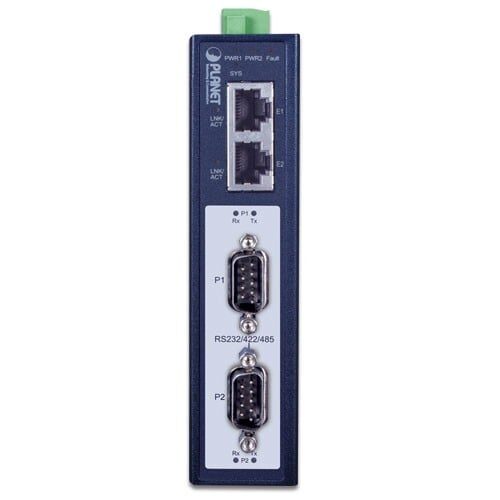

Serial interface type
RS-232/422/485
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more

Management features

Reset button
Yes
show more


Web-based management
Web-based management
Yes
show more

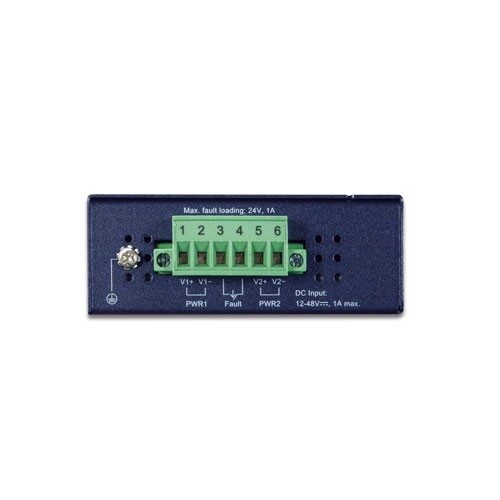

Power

Power requirements
12~48V DC
show more


DC input voltage
12 – 48 V
show more

Weight & dimensions

Height
Height
135 mm
show more


Depth
Depth
87.8 mm
show more


Width
Width
32 mm
show more


Weight
Weight
392 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
RoHS
FCC 15 A, CE A
show more

Logistics data

Harmonized System (HS) code
85176990
show more
