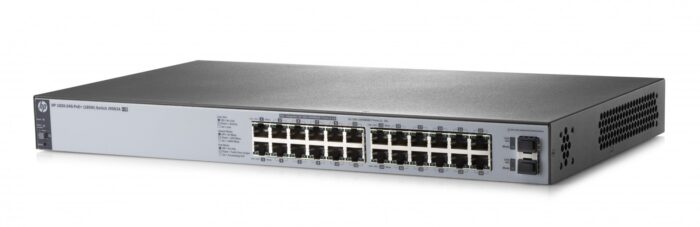

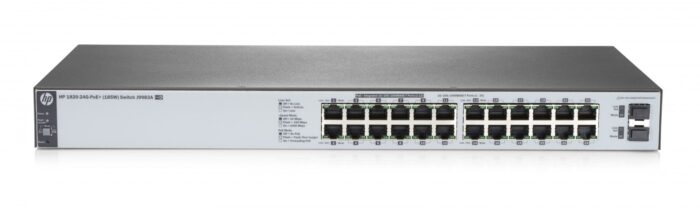

Hewlett Packard Enterprise 1820-24G-PoE+ (185W) Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet 1U Grey

The HPE 1820-24G-PoE+ (185W) is a managed Layer 2 switch designed for efficient networking solutions. It features 24 RJ-45 Ethernet ports, each capable of Gigabit Ethernet (10/100/1000 Mbps) with full duplex support. The switch has a MAC address table that can hold up to 8000 entries and boasts a switching capacity of 52 Gbit/s. It supports various networking standards, including IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u. The device includes a DC-in jack for power connection and supports Power over Ethernet (PoE). It is designed for rack mounting and has a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
24
show more


SFP module slots quantity
2
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-sensing
Yes
show more


Spanning tree protocol
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Optical fiber

Fiber ethernet cabling technology
100BASE-LX, 100BASE-SX, 1000BASE-X
show more

Data transmission

Switching capacity
Switching capacity
52 Gbit/s
show more


Throughput
38.6 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Latency (10-100 Mbps)
7 µs
show more


Latency (1 Gbps)
2 µs
show more


Jumbo frames support
Yes
show more


Packet buffer memory
1.5 MB
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
ARM Cortex-A9
show more


Processor frequency
Processor frequency
400 MHz
show more


Memory type
Memory type
SDRAM
show more


Internal memory
Internal memory
128 MB
show more


Flash memory
16 MB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
240 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
12
show more


Total Power over Ethernet (PoE) budget
185 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more


Storage relative humidity (H-H)
15 – 95%
show more

Weight & dimensions

Width
Width
442.5 mm
show more


Depth
Depth
246.1 mm
show more


Height
Height
43.9 mm
show more


Weight
Weight
3.31 kg
show more

Packaging content

User guide
Yes
show more

Sustainability

Sustainability certificates
ENERGY STAR
show more

Logistics data

Harmonized System (HS) code
85176990
show more
