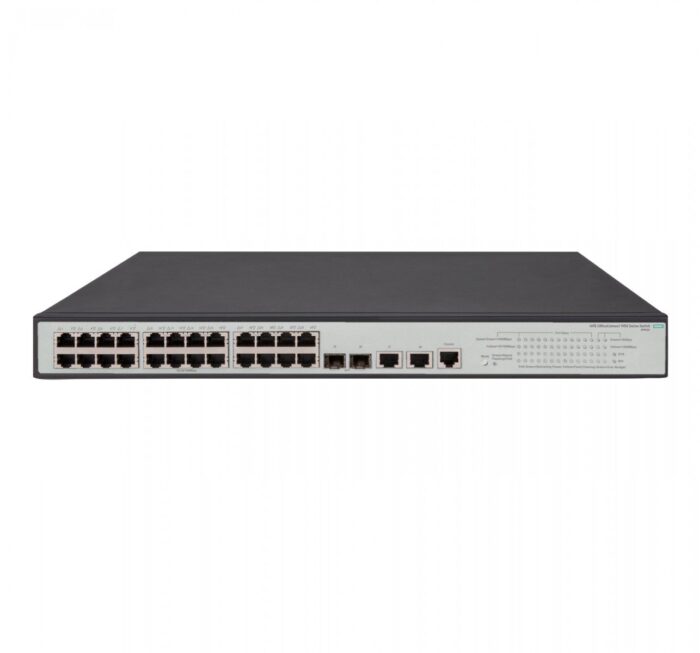

HPE 1950-24G-2SFP+-2XGT-PoE+ Switch

The HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ is a managed switch designed for efficient and reliable networking solutions. Operating at Layer 3, this switch provides 24 Gigabit Ethernet ports, supporting 10/100/1000 Mbps connections. It also features an RJ-45 console port for management and configuration.

This switch boasts a robust MAC address table accommodating up to 16,384 entries and offers a substantial switching capacity of 128 Gbit/s. Adhering to various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u, it ensures compatibility with a wide range of network devices.

Equipped with Power over Ethernet (PoE) capability, the HPE OfficeConnect 1950 can conveniently provide power to connected PoE-enabled devices, simplifying installations. Its 1U form factor and rack-mounting design make it an ideal choice for space-constrained environments.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP+ module slots quantity
2
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Spanning tree protocol
Yes
show more


Broadcast storm control
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
128 Gbit/s
show more


Throughput
95.2 Mpps
show more


MAC address table
MAC address table
16384 entries
show more


Latency (10-100 Mbps)
5 µs
show more


Latency (1 Gbps)
5 µs
show more


Latency (10 Gbps)
1.5 µs
show more


Jumbo frames support
Yes
show more


Packet buffer memory
1.5 MB
show more

Security

DHCP features
DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Virtual stacking (units)
4
show more


Memory type
Memory type
SDRAM
show more


Internal memory
Internal memory
1024 MB
show more


Flash memory
128 MB
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
425 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
370 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
360 mm
show more


Height
Height
44 mm
show more


Weight
Weight
6 kg
show more
