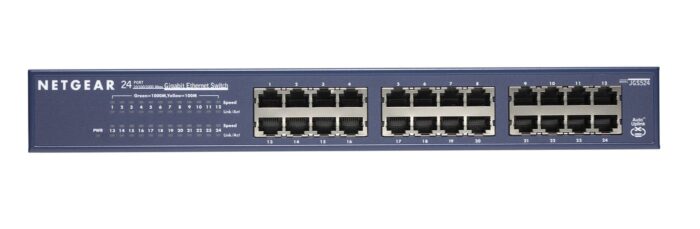

Netgear JGS524v2 24-port Gigabit Rack Mountable Network Switch – Unmanaged – Full Duplex – Rack Mounting (JGS524-200EUS)

The NETGEAR JGS524 is an unmanaged switch designed to facilitate efficient network connections. It features 24 Gigabit Ethernet RJ-45 ports that support data transfer rates of 10/100/1000 Mbps, ensuring fast communication across your network. The switch operates in full duplex mode, which allows data transmission and reception simultaneously for enhanced performance. It has a MAC address table capable of storing up to 8000 entries, supporting extensive network configurations. With a switching capacity of 48 Gbit/s, this switch can handle substantial network traffic. It complies with networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. Additionally, the NETGEAR JGS524 is designed for rack mounting, making it easy to integrate into your existing network infrastructure.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Flow control support
Yes
show more

Data transmission

Supported data transfer rates
Supported data transfer rates
10/100/1000 Mbps
show more


Switching capacity
Switching capacity
48 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Maximum data transfer rate
2 Gbit/s
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Blue
show more

Performance

Noise level
Noise level
40 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
87600 h
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
17.9 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Latency
Latency
20 μs
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
330 x 207 x 43 mm
show more


Connectivity technology
Connectivity technology
Wired
show more


Connectivity LEDs
Y
show more


Power requirements
100~240V; 50-60Hz;
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more


Storage relative humidity (H-H)
10 – 95%
show more

Weight & dimensions

Weight
Weight
2.4 kg
show more

Certificates

Certification
CE, FCC 15 A, VCCI A, EN 55022 (CISPR 22) A,
EN 50082-1, EN 55024, C-Tick
show more

Logistics data

Harmonized System (HS) code
85176990
show more
