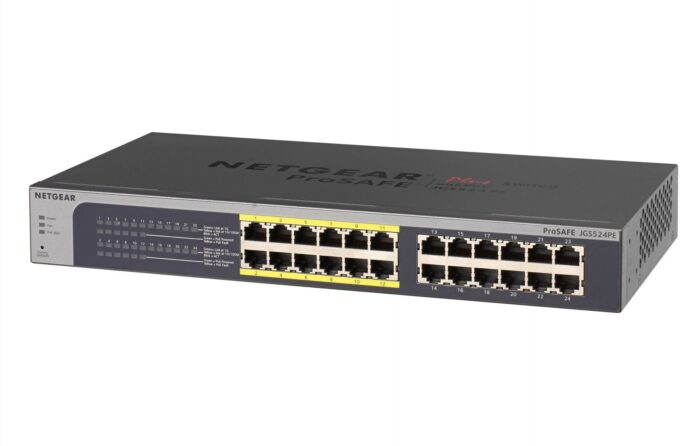

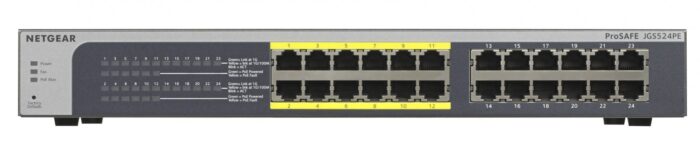

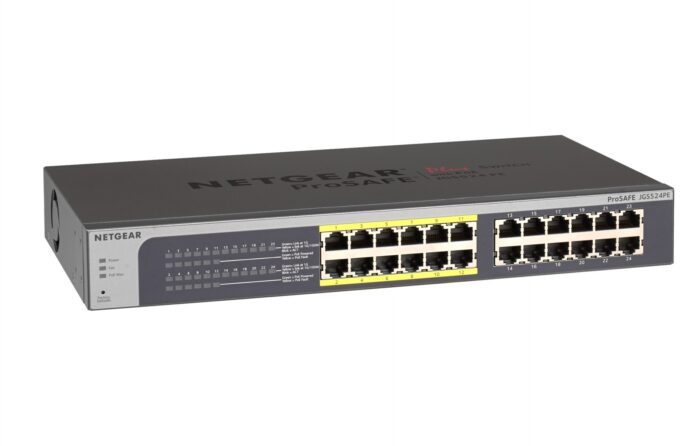

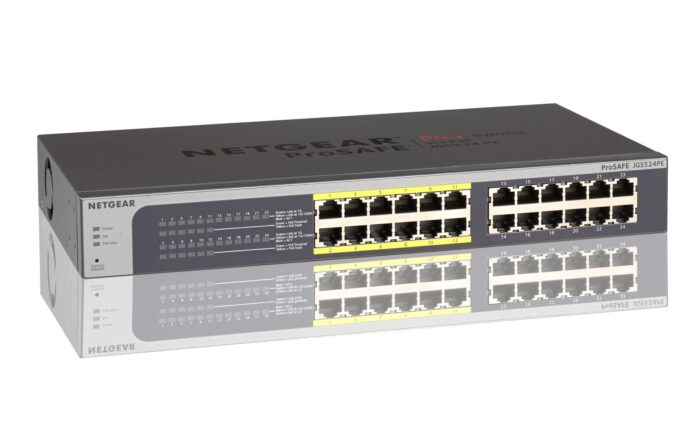

NETGEAR ProSafe Plus JGS524PE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The NETGEAR ProSafe Plus JGS524PE is a managed L3 switch designed for efficient network management and operation. It features 24 basic switching RJ-45 Ethernet ports which support Gigabit Ethernet speeds of 10/100/1000 Mbps, ensuring high-speed connectivity for a variety of devices. The switch supports full duplex communication, enabling simultaneous two-way data transfer, which helps in reducing network congestion and increasing performance.

With a substantial MAC address table that can store up to 16,000 entries and a robust switching capacity of 48 Gbit/s, this switch is well-suited for growing network demands. It adheres to several important networking standards, including IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility and reliability in diverse networking environments.

The switch is equipped with a DC-in jack as its power connector and supports Power over Ethernet (PoE), which allows it to power compatible network devices through Ethernet cables, simplifying installations and reducing clutter. Additionally, for efficient space utilization, the switch supports rack mounting, making it an ideal choice for businesses looking to enhance their network infrastructure with a reliable and high-performance solution.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Compatible memory cards
Compatible memory cards
Not supported
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Rate limiting
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Tagged VLAN, Port-based VLAN
show more


Number of VLANs
100
show more

Data transmission

Switching capacity
Switching capacity
48 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Packet buffer memory
6 MB
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more


Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
show more


DoS attack prevention
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more


Loop protection
Yes
show more

Multicast features

Multicast support
Yes
show more


Number of multicast groups filtered
64
show more

Protocols

Supported network protocols
Supported network protocols
IEEE 802.3, IEEE 802.3i,IEEE 802.3u, IEEE802.3ab, IEEE 802.1p,IEEE 802.3 af, IEEE 802.1Q, IEEE 802.3x
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, PoE, Power, Speed, Status
show more


Number of fans
Number of fans
1 fan(s)
show more

Performance

Noise level
Noise level
24.4 dB
show more


Buffer size
Buffer size
768 KB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
643506 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
2.5 A
show more


Power consumption (max)
Power consumption (max)
123 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
12
show more


Total Power over Ethernet (PoE) budget
100 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
78.7 BTU/h
show more

Weight & dimensions

Width
Width
328 mm
show more


Depth
Depth
169 mm
show more


Height
Height
43 mm
show more


Weight
Weight
1.84 kg
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Certificates

Certification
CE, CSA, UL 1950/cUL IEC 950/EN 60950
