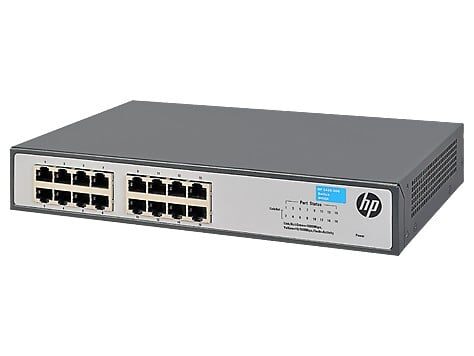

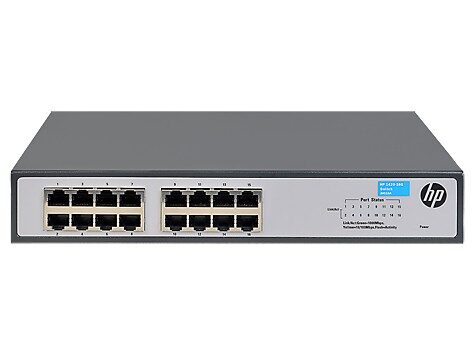

HPE 1420-16G Switch

The HPE OfficeConnect 1420 16G is an unmanaged switch designed for straightforward networking tasks. It operates at Layer 2. This switch offers 16 RJ-45 Ethernet ports, all supporting Gigabit Ethernet speeds of 10/100/1000, which ensures fast and reliable connections. It supports full duplex communication and has a MAC address table capable of handling up to 8,192 entries. The switch has a total switching capacity of 32 Gbit/s, which facilitates efficient data handling. It adheres to networking standards such as IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u. The switch is suitable for rack mounting and comes in a 1U form factor, making it a compact and efficient solution for business networking needs.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Throughput
23.8 Mpps
show more


MAC address table
MAC address table
8192 entries
show more


Latency (10-100 Mbps)
8 µs
show more


Latency (1 Gbps)
16 µs
show more


Packet buffer memory
0.5 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Flash memory
1 MB
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
12 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
266 mm
show more


Depth
Depth
162 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.2 kg
show more
