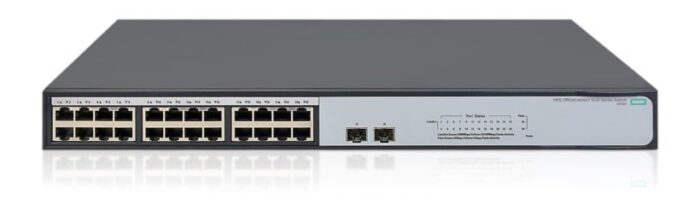

Hewlett Packard Enterprise OfficeConnect 1420 24G 2SFP+ Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Grey

The HPE OfficeConnect 1420 24G 2SFP+ is an unmanaged switch designed for efficient network management. It operates at Layer 2 of the network model. This switch includes 24 basic RJ-45 Ethernet ports, supporting Gigabit Ethernet speeds of 10/100/1000 Mbps. It supports full duplex communication and the MAC address table can handle up to 16,384 entries. With a switching capacity of 88 Gbit/s, it is built to handle substantial network traffic. The switch adheres to networking standards such as IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u. It is suited for rack mounting, with a 1U form factor, making it convenient for integration into existing network setups.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP+ module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


10G support
10G support
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
88 Gbit/s
show more


Throughput
65.5 Mpps
show more


MAC address table
MAC address table
16384 entries
show more


Latency (10-100 Mbps)
8 µs
show more


Latency (1 Gbps)
16 µs
show more


Latency (10 Gbps)
2 µs
show more


Packet buffer memory
1.5 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Flash memory
8 MB
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
21 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
238 mm
show more


Height
Height
44 mm
show more


Weight
Weight
2.9 kg
show more

Logistics data

Harmonized System (HS) code
85176990
show more
