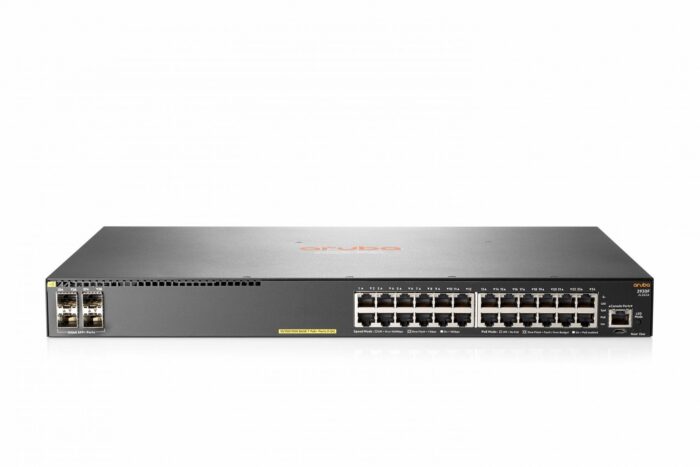

Hewlett Packard Enterprise Aruba 2930F 24G PoE+ 4SFP+ TAA Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet 1U Grey

The HPE Aruba Networking 2930F is a managed switch designed for efficient network management at the layer 3 level. It features 24 Gigabit Ethernet RJ-45 ports, allowing for data transfer rates of 10/100/1000 Mbps. The switch includes a console port with an RJ-45 interface and supports full duplex communication. It has a MAC address table with a capacity of 32,768 entries and offers a switching capacity of 128 Gbit/s. The device complies with various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, and IEEE 802.3u. The switch supports Power over Ethernet (PoE) and can be mounted on a rack, with a compact form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Traffic classification
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP+ module slots quantity
4
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


IP routing
Yes
show more


Full duplex
Full duplex
Yes
show more


Routing entries
10000
show more


Spanning tree protocol
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-sensing
Yes
show more


Flow control support
Yes
show more


Rate limiting
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
128 Gbit/s
show more


Throughput
95.2 Mpps
show more


MAC address table
MAC address table
32768 entries
show more


Latency (1 Gbps)
3.8 µs
show more


Latency (10 Gbps)
1.6 µs
show more

Security

DHCP features
DHCP server
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
ARM Cortex-A9
show more


Processor frequency
Processor frequency
1016 MHz
show more


Memory type
Memory type
DDR3-SDRAM
show more


Internal memory
Internal memory
1024 MB
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
36.8 W
show more


Power consumption (max)
Power consumption (max)
445 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
370 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more


Heat dissipation
Heat dissipation
1518 BTU/h
show more

Weight & dimensions

Width
Width
442.5 mm
show more


Depth
Depth
304.2 mm
show more


Height
Height
43.9 mm
show more


Weight
Weight
3.9 kg
show more

Logistics data

Harmonized System (HS) code
85176990
