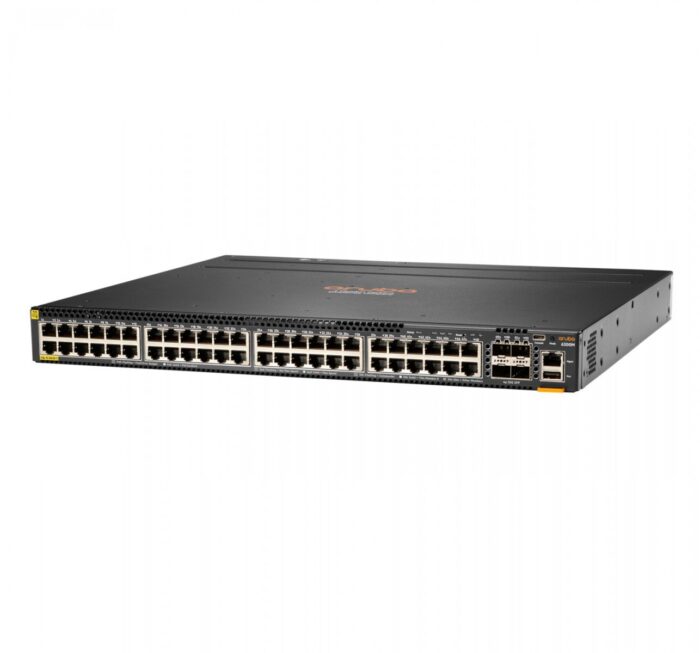

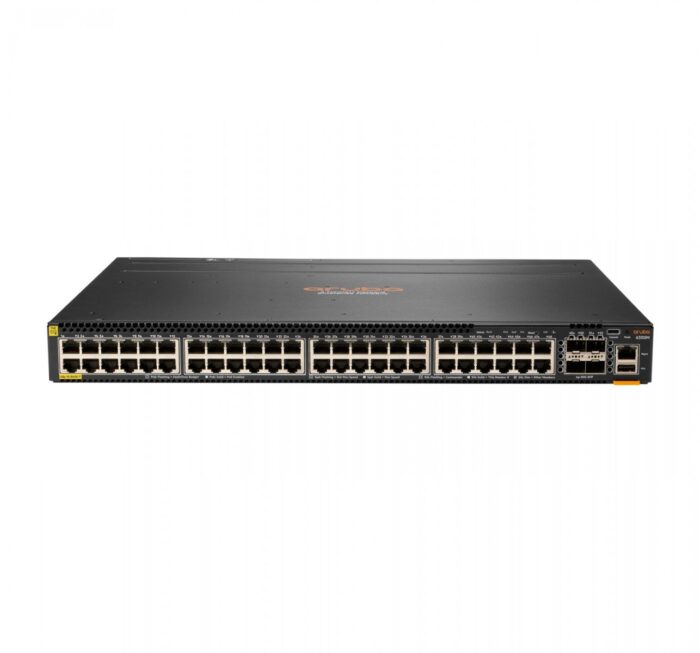

HPE Aruba 6300M 48-Port PoE Switch with 4 SFP56 Ports

The HPE Aruba Networking Aruba 6300M is a managed switch designed for L3 switching. It features 48 basic RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000). The switch boasts a MAC address table with 29,490 entries and a switching capacity of 496 Gbit/s. It adheres to various networking standards including IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, and IEEE 802.1s. The device supports Power over Ethernet (PoE) and is designed for rack mounting with a form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
48
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
4
show more

Network

Networking standards
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Spanning tree protocol
Yes
show more


Link aggregation
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Optical fiber

Transmission distance (max)
10 km
show more

Data transmission

Switching capacity
Switching capacity
496 Gbit/s
show more


Throughput
369 Mpps
show more


MAC address table
MAC address table
29490 entries
show more


Latency (1 Gbps)
2.28 µs
show more


Latency (10 Gbps)
1.46 µs
show more


Jumbo frames support
Yes
show more


Packet buffer memory
8 MB
show more

Security

DHCP features
DHCP server
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more

Multicast features

Multicast support
Yes
show more

Protocols

Routing protocols
BGP, BGP4, IP, OSPF
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more

Performance

Physical stacking (units)
10
show more


Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
ARM Cortex-A72
show more


Processor frequency
Processor frequency
1800 MHz
show more


Memory type
Memory type
DDR4-SDRAM
show more


Internal memory
Internal memory
8192 MB
show more


Flash memory
32 MB
show more

Power

Power supply included
Power supply included
No
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
1440 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more

Weight & dimensions

Width
Width
442 mm
show more


Depth
Depth
385 mm
show more


Height
Height
44 mm
show more


Weight
Weight
5.72 kg
show more

Logistics data

Harmonized System (HS) code
85176990
show more
