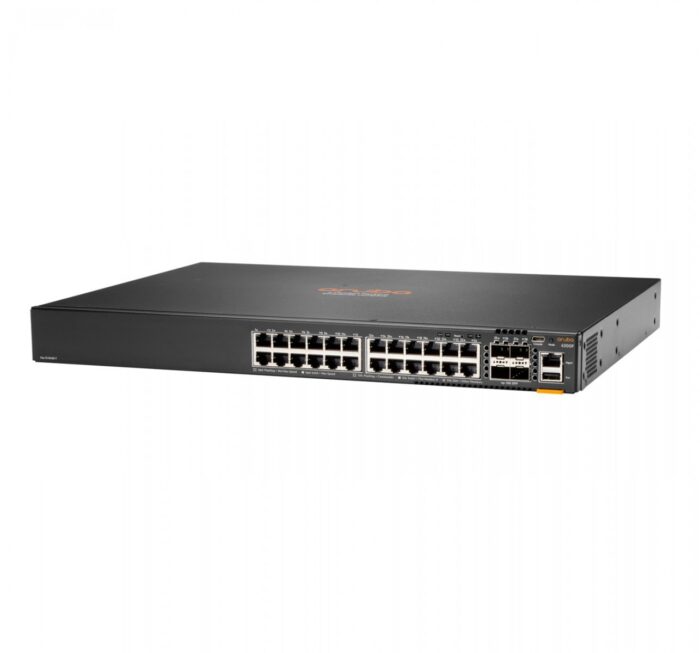

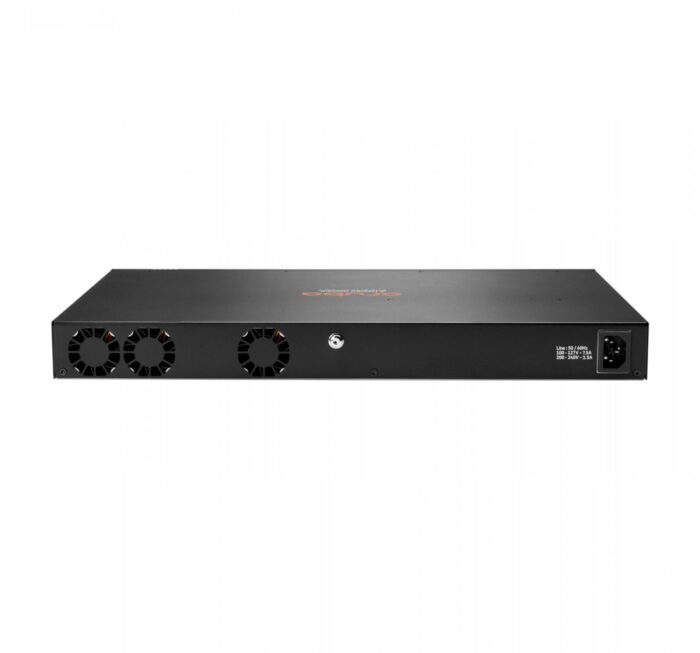

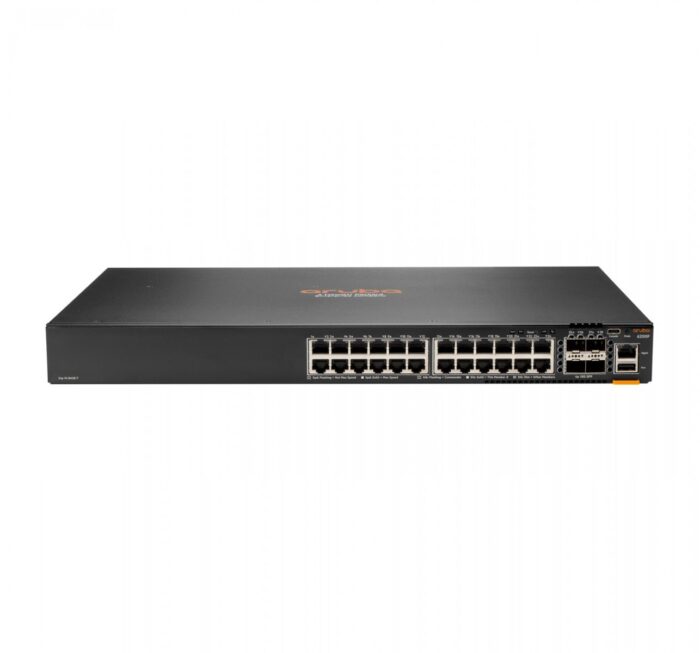

Aruba 6200F 24G 4SFP+ Managed L3 Gigabit Ethernet 1U Black

The HPE Aruba Networking Aruba 6200F 24G 4SFP+ is a managed switch with L3 capabilities. It includes 24 Gigabit Ethernet (10/100/1000) RJ-45 ports for basic switching, and features both RJ-45 and USB Type-C console ports. The switch supports a MAC address table with up to 16,000 entries and has a switching capacity of 128 Gbit/s. It adheres to networking standards including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, and IEEE 802.1v. This switch is designed for rack mounting and has a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP+ module slots quantity
4
show more


Console port
RJ-45/USB Type-C
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Spanning tree protocol
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Optical fiber

Transmission distance (max)
10 km
show more

Data transmission

Switching capacity
Switching capacity
128 Gbit/s
show more


Throughput
95.2 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Latency (1 Gbps)
2.28 µs
show more


Latency (10 Gbps)
1.46 µs
show more


Jumbo frames support
Yes
show more


Packet buffer memory
8 MB
show more

Security

Access Control List (ACL)
Yes
show more


Access Control List (ACL) egress
22048
show more


Access Control List (ACL) ingress
5120
show more


IGMP snooping
Yes
show more


Authentication type
Authentication type
RADIUS, TACACS+
show more


Authentication
MAC-based authentication, Web-based authentication
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more

Performance

Physical stacking (units)
8
show more


Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
ARM Cortex-A72
show more


Processor frequency
Processor frequency
1800 MHz
show more


Memory type
Memory type
DDR4-SDRAM
show more


Internal memory
Internal memory
8192 MB
show more


Flash memory
16384 MB
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
59 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more


Storage relative humidity (H-H)
15 – 90%
show more

Weight & dimensions

Width
Width
442 mm
show more


Depth
Depth
327 mm
show more


Height
Height
43.9 mm
show more


Weight
Weight
4.36 kg
show more

Logistics data

Harmonized System (HS) code
85176990
show more
