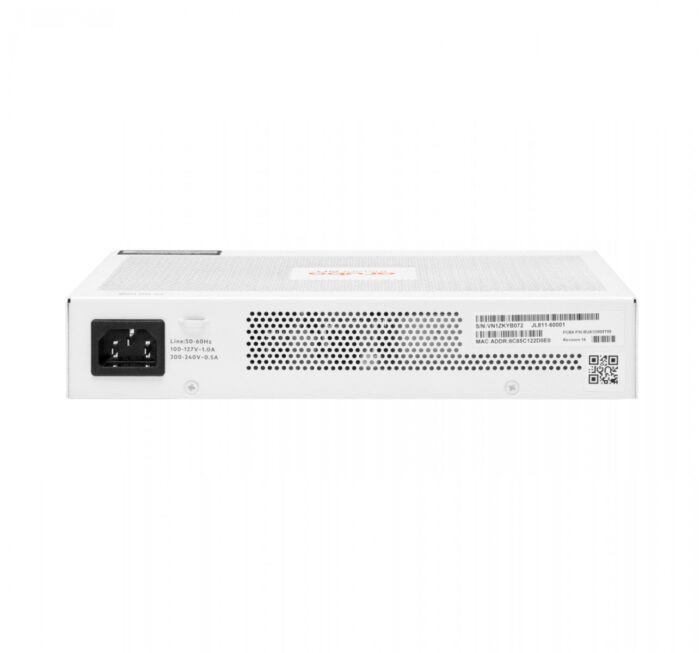

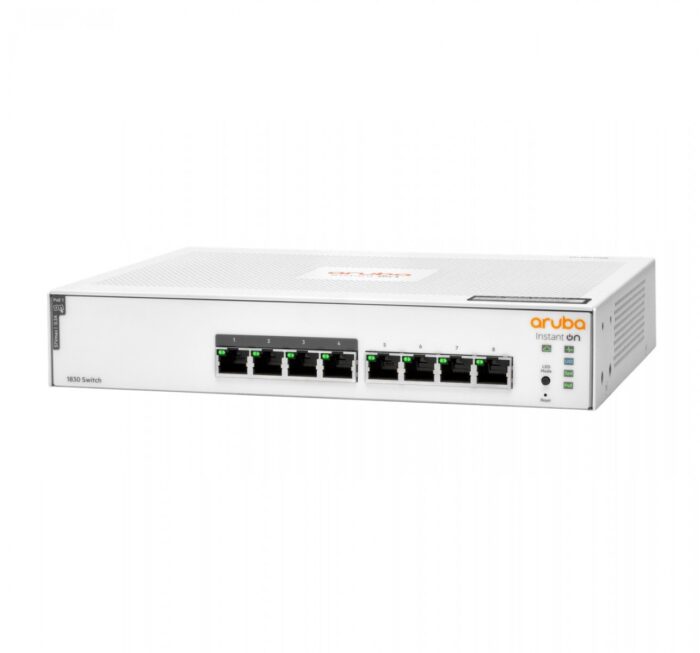

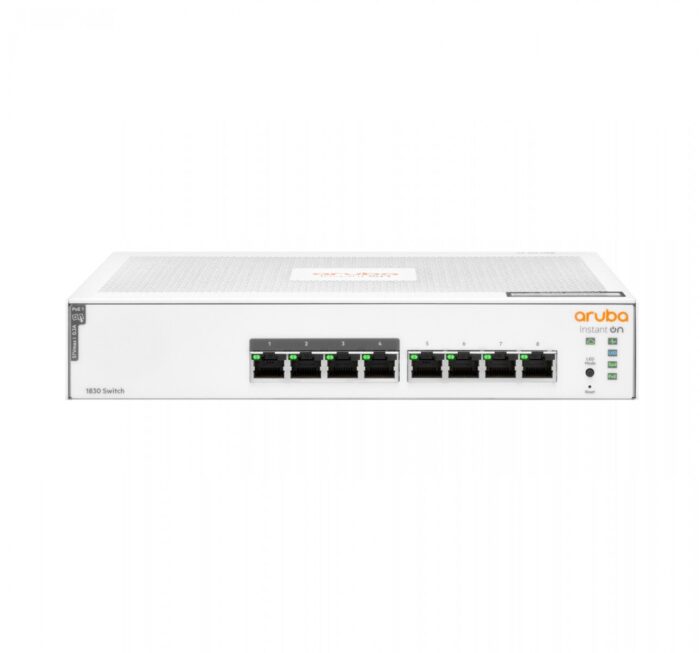

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch

The HPE Aruba Networking Aruba Instant On 1830 is a managed switch featuring 8 RJ-45 Ethernet ports which support Gigabit Ethernet speeds of 10/100/1000. Designed for layer 2 switching, it offers full duplex capability and a MAC address table with 8000 entries. The switch boasts a switching capacity of 16 Gbit/s and adheres to several networking standards, including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, and IEEE 802.3ab. It supports Power over Ethernet (PoE) and has a PoE power budget of 65 watts across 4 ports. This switch is suitable for rack mounting and has a form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Cloud-managed
Yes
show more


System event log
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-sensing
Yes
show more


Spanning tree protocol
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Throughput
11.9 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Latency (10-100 Mbps)
5.2 µs
show more


Latency (1 Gbps)
2.8 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
1.5 MB
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more

Performance

Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
ARM Cortex-A9
show more


Processor frequency
Processor frequency
800 MHz
show more


Memory type
Memory type
SDRAM
show more


Internal memory
Internal memory
512 MB
show more


Flash memory
256 MB
show more


Fanless
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
83.67 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
65 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more


Storage relative humidity (H-H)
15 – 95%
show more

Weight & dimensions

Width
Width
245 mm
show more


Depth
Depth
195 mm
show more


Height
Height
43.9 mm
show more


Weight
Weight
1.54 kg
show more

Logistics data

Harmonized System (HS) code
85176990
show more
