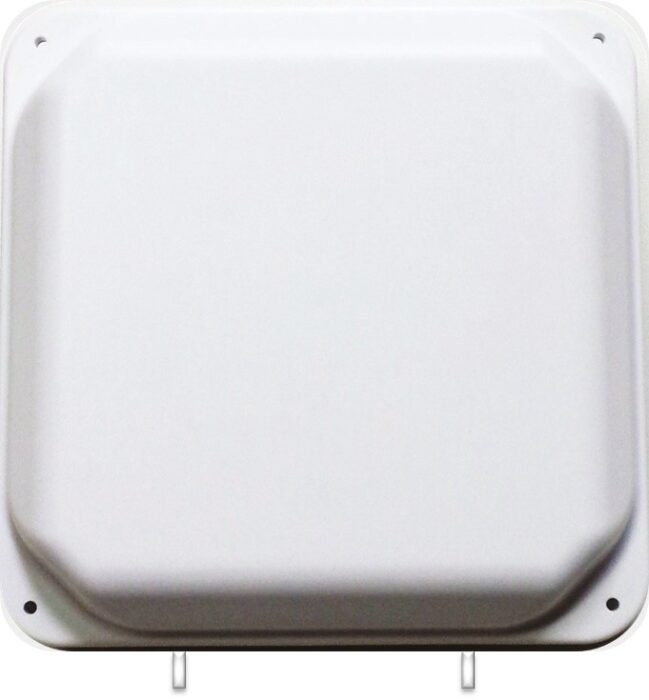

Aruba 2.4/5G 5dBi 2×2 Panel AP-ANT-25A

The HPE Aruba Networking AP-ANT-25A is an antenna with a maximum gain level of 5 dBi. It operates within the frequency bands of 2.4 to 2.5 GHz and 4.9 to 6.0 GHz, offering an antenna gain of 5 dBi at 2.4 GHz. Designed with an RP-SMA antenna connector, it features dual polarization and a Voltage Standing Wave Ratio (VSWR) of 2.0:1. The antenna measures 200 mm in width, 32 mm in depth, and 200 mm in height. The package contains one unit.

Performance

Frequency band
Frequency band
2.4 – 2.5 / 4.9 – 6.0 GHz
show more


Antenna gain (5 GHz)
5 dBi
show more


Antenna gain (2.4 GHz)
5 dBi
show more


Impedance
Impedance
50 Ω
show more


Horizontal beam width
100°
show more


Vertical beam width
90°
show more


Antenna gain level (max)
Antenna gain level (max)
5 dBi
show more

Features

Antenna connector type
Antenna connector type
RP-SMA
show more


Polarization
Dual polarization
show more


Voltage Standing Wave Ratio (VSWR)
2.0:1
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Aluminium
show more


Purpose
Purpose
Indoor & outdoor
show more


Cable length
Cable length
0.75 m
show more


Mounting
Mounting
Wall/Pole
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-45 – 70 °C
show more

Weight & dimensions

Width
Width
200 mm
show more


Depth
Depth
32 mm
show more


Height
Height
200 mm
show more


Weight
Weight
700 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more
