Aruba 4.9-5.9GHz 12.0dBi 75x25deg +/- 45deg and V Pol 3 MIMO High Gain Directional Antenna (ANT-3×3-5712)

The HPE Aruba Networking ANT-3×3-5712 is a high-performance antenna designed for optimal connectivity. It features a maximum antenna gain level of 11.5 dBi, operating within a frequency band of 4.9 to 6 GHz. Specifically at 5 GHz, the antenna gain remains at 11.5 dBi. The antenna utilizes an N-type connector with a female connector gender and supports dual polarization. Its dimensions are 190 mm in width, 30 mm in depth, and 190 mm in height. Each pack contains one antenna.

Performance

Frequency band
Frequency band
4.9 – 6 GHz
show more


Antenna gain (5 GHz)
11.5 dBi
show more


Impedance
Impedance
50 Ω
show more


Horizontal beam width
70°
show more


Vertical beam width
25°
show more


Antenna gain level (max)
Antenna gain level (max)
11.5 dBi
show more

Features

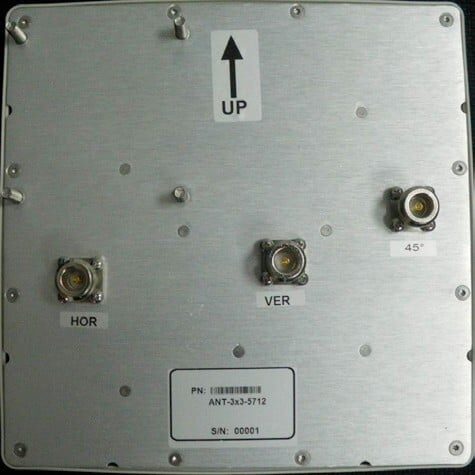

Antenna connector type
Antenna connector type
N-type
show more


Connector gender
Connector gender
Female
show more


Polarization
Dual polarization
show more


Voltage Standing Wave Ratio (VSWR)
2.0:1
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Aluminium
show more


Purpose
Purpose
Outdoor
show more

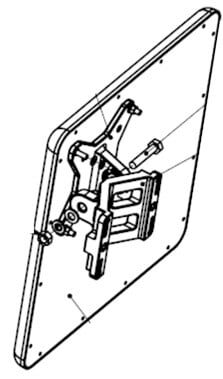

Mounting
Mounting
Wall/Pole
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-45 – 65 °C
show more

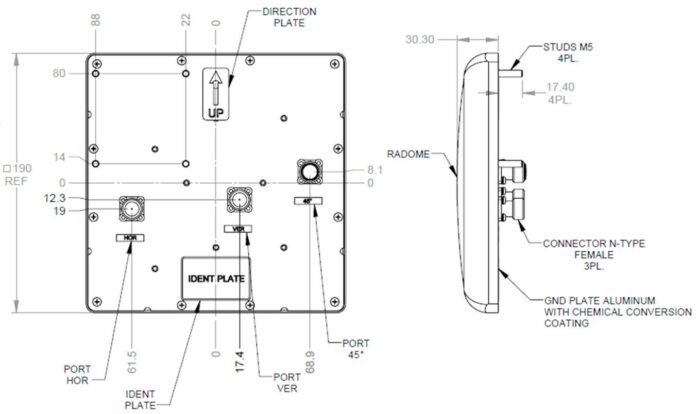

Weight & dimensions

Width
Width
190 mm
show more


Depth
Depth
30 mm
show more


Height
Height
190 mm
show more


Weight
Weight
1 kg
show more

Packaging content

Quantity per pack
1 pc(s)
show more


Mounting kit
Yes
show more
