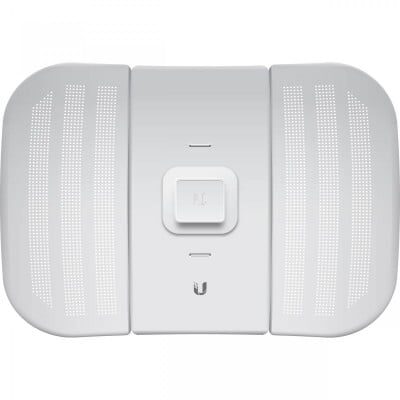

Innovative Ubiquiti LiteBeam M5 series LBE-M5-23 radio system
The Ubiquiti LBE-M5-23 radio system operates in the 5 GHz band, characterized by the use of the 802.11n MIMO 1×1 standard, achieving up to 100 Mbps bandwidth. Ubiquiti LBE-M5-23 functions in two modes: Router or Bridge, and operates within the 5150 to 5875 MHz frequency band. The 802.11a/n MIMO 1×1 standard enables it to reach a 100 Mbps TP/IP real bandwidth.
Specifications LBE-M5-23 includes an integrated radio module with a 25 dBm power level and a maximum antenna gain of 23 dBi. The system utilizes an Atheros MIPS 74KC 560 MHz processor.
InnerFeed Technology The LBE-M5-23 employs InnerFeed technology, which integrates the antenna emitter with the radio module, enhancing efficiency.
AirMax Protocol The product complies with the AirMax protocol, which addresses hidden station issues and facilitates interference-free transmission.

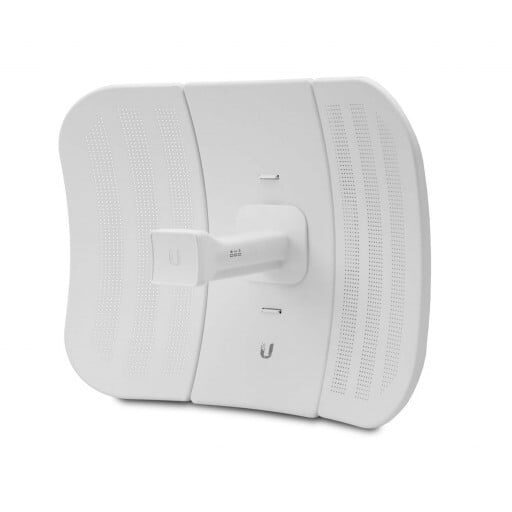

Installation The installation process is simple and effortless, with the antenna featuring a spherical handle for easy configuration and angle setup.
Key Features – 5 GHz band – Power gain of 23 dBi – Dimensions: 362 x 267 x 184 mm – 802.11n MIMO 1×1 standard – Up to 100 Mbps bandwidth
Comparison
Product: LBE-M5-23 vs LBE-5AC-23 vs LBE-5AC-16-120
Frequency Band: All operate on 5 GHz
Antenna Gain: LBE-M5-23 and LBE-5AC-23 offer 23 dBi, while LBE-5AC-16-120 offers 16 dBi
Antenna Type: LBE-M5-23 has 1×1 SISO; the others have 2×2 MIMO
Polarization: LBE-M5-23 has vertical polarization; the others have vertical + horizontal polarization
Additional Features: Specific features such as airMAX ac compatibility, Gigabit Ethernet, Point-to-Point Functionality, and Point-to-MultiPoint Functionality may vary or not be applicable across models.
Manufacturer Information For more details, refer to the manufacturer's documentation and user manual.
| Mechanical | |
|---|---|
| Dimensions | 362 x 267 x 184 mm (14.25 x 10.5 x 7.2") |
| Weight | 750 g (1.7 lb) |
| Mounting | Pole mounting (Kit included) |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.2A PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| ESD/EMP protection | Air/contact ± 24kV |
| ETSI specification | EN 302 326 DN2 |
| Shock and vibration | ETSI300-019-1.4 |
| RoHS compliance | Yes |
| Ambient operating temperature | -40 to 70°C (-40 to 158°F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating frequency | Worldwide: 5150 – 5875 MHz USA: 5725 – 5850 MHz |
| Output power | 25 dBm |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
