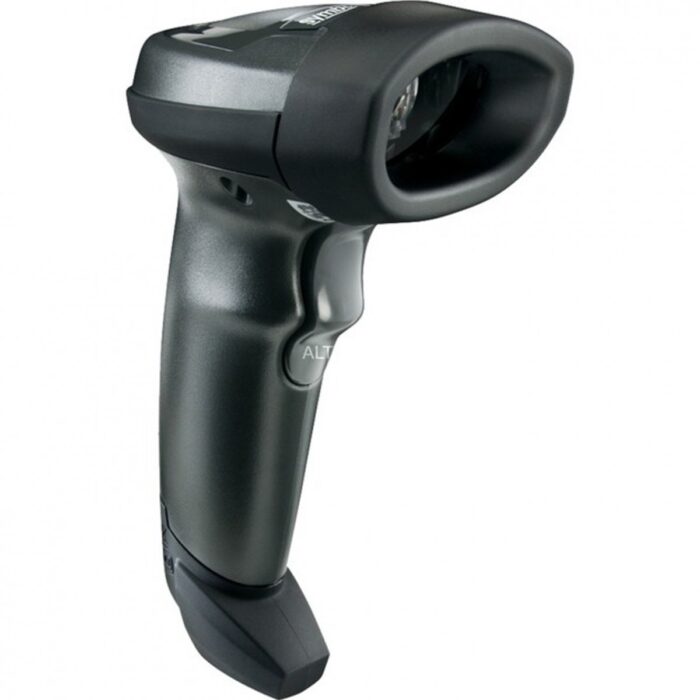

Zebra LI2208 Scanner, Linear Imager, Corded, Black, North America Only

The Zebra LI2208 is a handheld bar code reader designed for 1D scanning. It features a linear sensor type and utilizes wired connectivity technology, primarily through USB standard interfaces. The device comes with a 2.1-meter cable and is available in black color. It has an International Protection code of IP42 and holds certifications such as EMC FCC Part 15 Class B, ICES 003 Class B, and IEC 60601-1-2. The product also complies with the Environmental RoHS Directive 2002/95/EEC. The Zebra LI2208 operates on a DC power source with an input voltage of 5V and has a power consumption of 165 mA. The device weighs 140 grams and measures 67 mm in width and 99 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN
show more


Sensor type
Sensor type
Linear
show more


Read rate (max)
547 reads/s
show more


Light levels (direct sunlight)
0 – 108000 lx
show more


Wavelength
Wavelength
617 nm
show more


Pitch reading angle
-45 – 45°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB
show more


Cable length
Cable length
2.1 m
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP42
show more


Product colour
Product colour
Black
show more


Certification
EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
165 mA
show more

Weight & dimensions

Width
Width
67 mm
show more


Depth
Depth
99 mm
show more


Height
Height
160 mm
show more


Weight
Weight
140 g
show more

Packaging data

Cables included
USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
