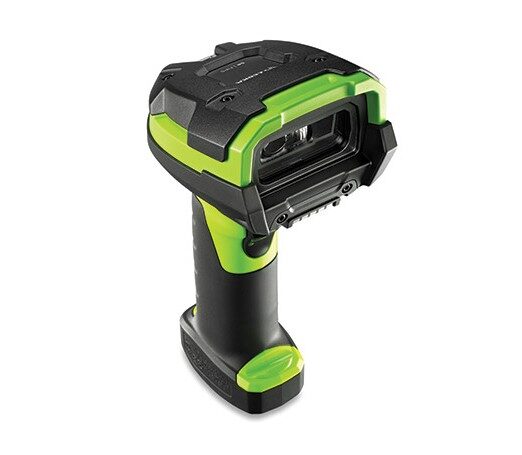

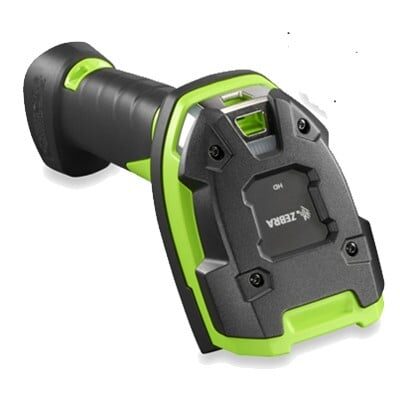

Zebra LI3608 Handheld Bar Code Reader 1D Black, Green

The Zebra LI3608 is a handheld barcode reader designed to scan 1D barcodes. It supports various barcode types, including Codabar, Code 11, Code 128, Code 25 (non-IR 2 of 5), Code 39, Code 93, GS1-128 (UCC/EAN-128), and U.P.C. The device offers wired connectivity and standard interfaces such as USB, RS-232, and Bluetooth. It has a data transfer rate of 3 Mbit/s. This barcode scanner features a black and green color scheme and is built with an International Protection (IP) code of IP65, which includes shock-resistant protection features. The Zebra LI3608 is powered by a Lithium-Ion (Li-Ion) battery with a capacity of 3100 mAh. It weighs 287 grams and measures 132 mm in width and 76 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Optical sensor resolution
1500 pixels
show more


Scanner type
Scanner type
1D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Not supported
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 25 (non-IR 2 of 5), Code 39, Code 93, GS1-128 (UCC/EAN-128), U.P.C.
show more


Tilt reading angle
-65 – 65°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-45 – 45°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB, RS-232, Bluetooth
show more


Data transfer rate
Data transfer rate
3 Mbit/s
show more


Wireless range
100 m
show more


PC connection
RS-232
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP65
show more


Protection features
Protection features
Shock resistant
show more


LED indicators
Yes
show more


Product colour
Product colour
Black, Green
show more


Certification
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, second edition,
CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED), EN 55022: 2010/AC: 2011 (Class B), EN 55024: 2010, EN 61000-6-2: 2005/AC:2005, EN 61000-3-2: 2006
+ A1: 2009 + A2: 2009 (Class B), EN 61000-3-3: 2013, EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 5, Class B
show more

Power

Power source type
Power source type
Battery
show more


Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Battery capacity
Battery capacity
3100 mAh
show more


Input voltage
Input voltage
4.5 – 5.5 V
show more

Weight & dimensions

Width
Width
132 mm
show more


Depth
Depth
76 mm
show more


Height
Height
185 mm
show more


Weight
Weight
287 g
show more

Packaging data

Cables included
USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-30 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
