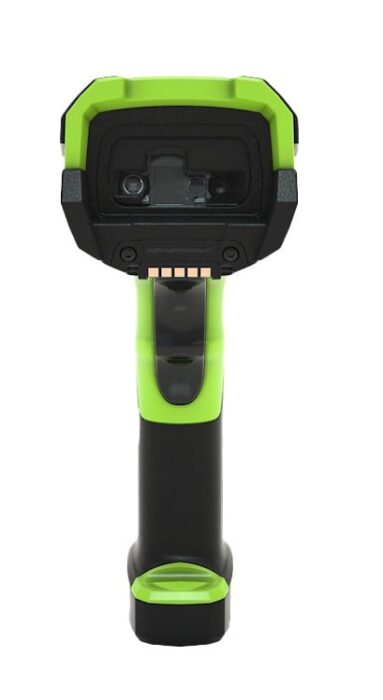

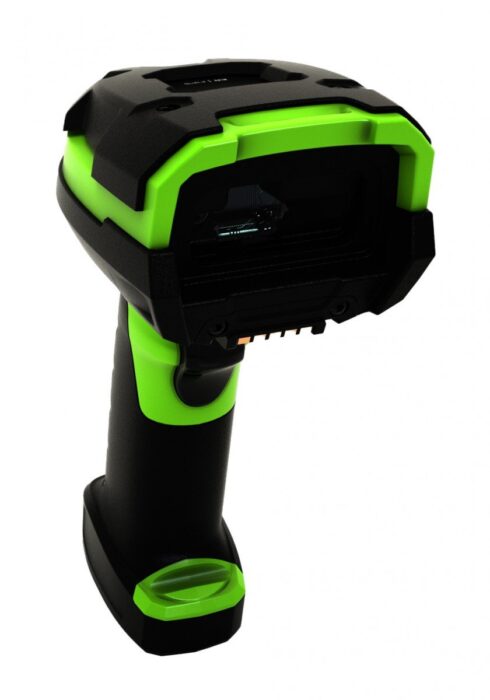

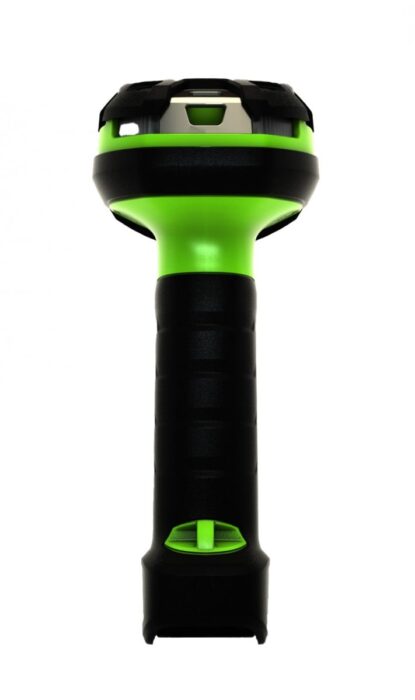

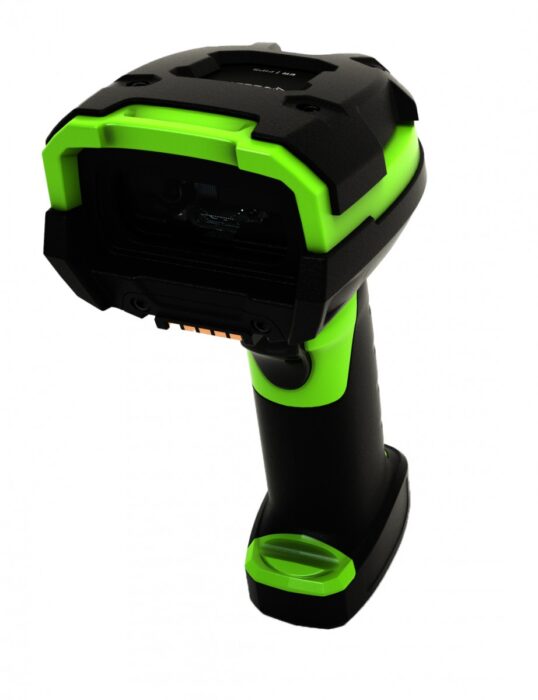

Zebra LI3678-ER Handheld Bar Code Reader 1D Black, Green

The Zebra LI3678-ER is a handheld bar code reader designed for scanning 1D barcodes. It supports various linear barcodes including Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, and GS1 DataBar Omnidirectional. This device features both wired and wireless connectivity, with standard interfaces such as RS-232, USB, and keyboard wedge. It offers a data transfer rate of 3 Mbit/s. The scanner comes in black and green colors, and it is built to withstand harsh environments with an IP67 rating, making it both dust and water-resistant. It is powered by a lithium-ion battery with a capacity of 3100 mAh. The device weighs 424 grams and measures 77 mm in width and 142 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Optical sensor resolution
2496 pixels
show more


Scanner type
Scanner type
1D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Not supported
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
show more


Working distance
17.1 m
show more


Light levels (direct sunlight)
0 – 107639 lx
show more


Wavelength
Wavelength
660 nm
show more


Pitch reading angle
-65 – 65°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired & Wireless
show more


Standard interfaces
Standard interfaces
RS-232, USB, Keyboard wedge
show more


Data transfer rate
Data transfer rate
3 Mbit/s
show more


Wireless range
100 m
show more


Bluetooth Low Energy (BLE)
Yes
show more


Bluetooth version
Bluetooth version
4.0
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP67
show more


Protection features
Protection features
Dust resistant, Water resistant
show more


LED indicators
Yes
show more


Product colour
Product colour
Black, Green
show more


Programming function
Yes
show more

Power

Power source type
Power source type
Battery
show more


Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Number of batteries supported
Number of batteries supported
1
show more


Battery capacity
Battery capacity
3100 mAh
show more


Number of reads per charge
100000
show more

Weight & dimensions

Width
Width
77 mm
show more


Depth
Depth
142 mm
show more


Height
Height
185 mm
show more


Weight
Weight
424 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
