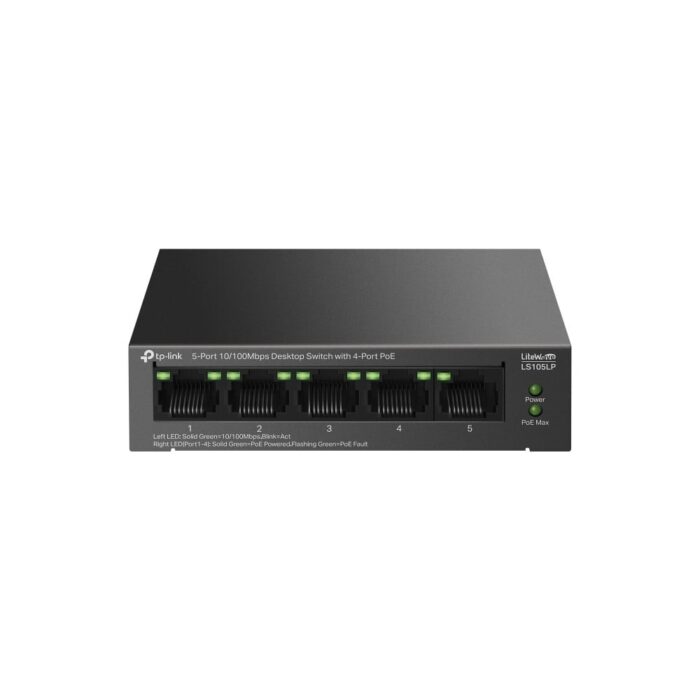

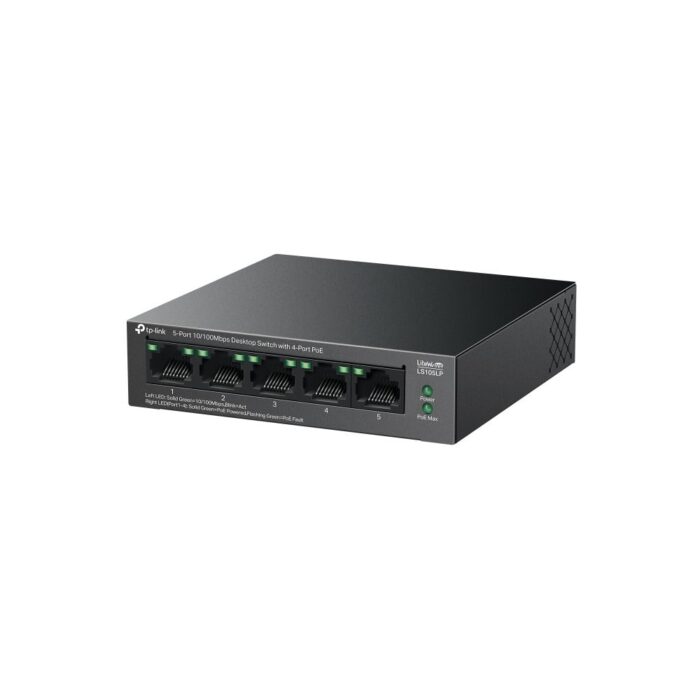

TP-Link LS105LP 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

The TP-Link LS105LP is a versatile desktop switch designed to improve network connectivity and provide power to various devices. It features five Fast Ethernet ports supporting speeds of up to 100 Mbps, making it ideal for small businesses and home offices. Importantly, four of these ports come with Power over Ethernet (PoE) capability, enabling the simultaneous transfer of electrical power and data to devices like IP cameras and VoIP phones. This feature simplifies cabling and reduces installation costs, offering a practical solution for users looking to streamline their network setup.

Built for durability and compactness, the TP-Link LS105LP can be easily placed on a desktop or mounted on a wall, offering flexibility in various installation scenarios. The switch operates quietly due to its fanless design, ensuring that it remains unobtrusive in any office environment. Moreover, it supports Auto-MDI/MDIX, eliminating the need for crossover cables and facilitating a straightforward plug-and-play setup for added user convenience.

With a total PoE power budget of 41 watts, the TP-Link LS105LP effectively manages multiple devices without requiring additional power sources. This capability guarantees a reliable power supply for all connected devices, distinguishing it from many competitors in the market. As a product from TP-Link, a leader in networking solutions, the LS105LP is an effective solution for expanding network connections while delivering power to supported devices, making it a valuable addition to any network infrastructure.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
1 Gbit/s
show more


Forwarding rate
0.744 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
0.81 A
show more


Power consumption (max)
Power consumption (max)
46.45 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Power over Ethernet (PoE) power per port
15.4 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
157.93 BTU/h
show more

Weight & dimensions

Width
Width
100 mm
show more


Depth
Depth
98 mm
show more


Height
Height
25 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE, FCC, RoHS
show more
