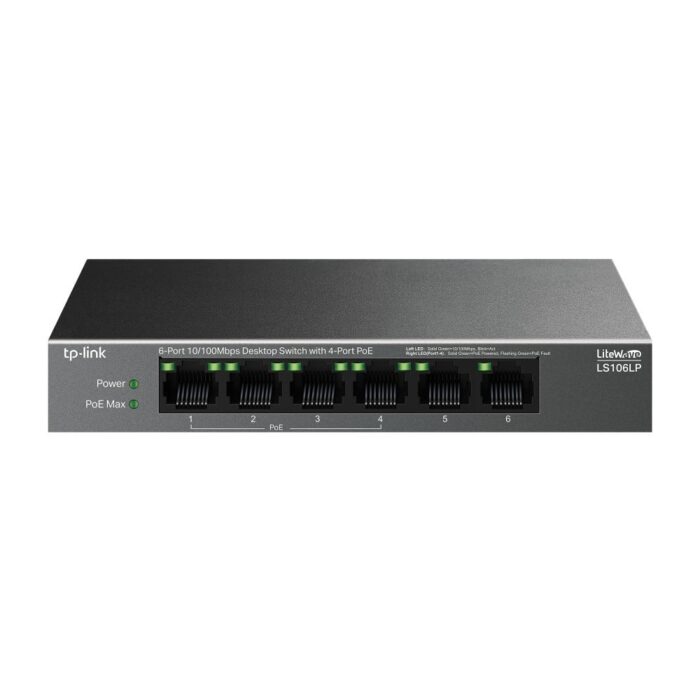

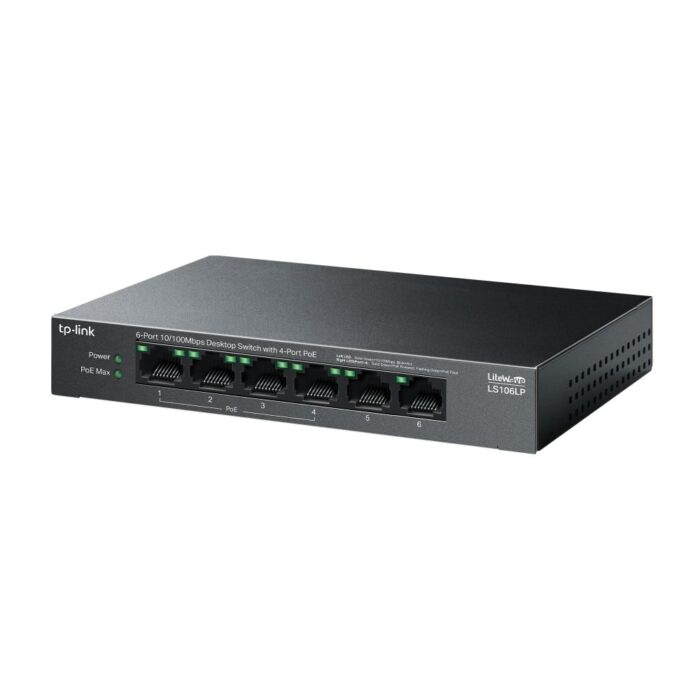

TP-Link LS106LP 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE

The TP-Link LS106LP is a high-performance 6-Port 10/100 Mbps Desktop Switch designed to improve network connectivity and power supply for various devices. With its 4-Port Power over Ethernet (PoE) capability, it allows the simultaneous transmission of both data and power over a single cable, simplifying your network setup. This feature is especially beneficial for deploying devices such as network cameras, VoIP phones, and wireless access points, as it reduces the need for additional power sources and minimizes cable clutter.

The switch comes with a PoE power budget of up to 41 watts, ensuring a reliable power supply to all connected PoE devices. It also features automatic cable detection, eliminating the need for manual configuration, and supports auto-negotiation to optimize the speed for each connected device. This intelligent design ensures efficient data handling and smooth network operation, making it ideal for small or home office environments.

Its compact design allows for easy installation in various locations, offering plug-and-play installation that enables immediate operation when network devices are connected. Built to deliver exceptional performance with minimal downtime, this switch ensures your network remains robust and reliable. As a product from TP-Link, a leader in networking solutions, the LS106LP is notable for its combination of functionality and ease of use, making it an excellent choice for enhancing your network infrastructure.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
6
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.2 Gbit/s
show more


Forwarding rate
0.8928 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more

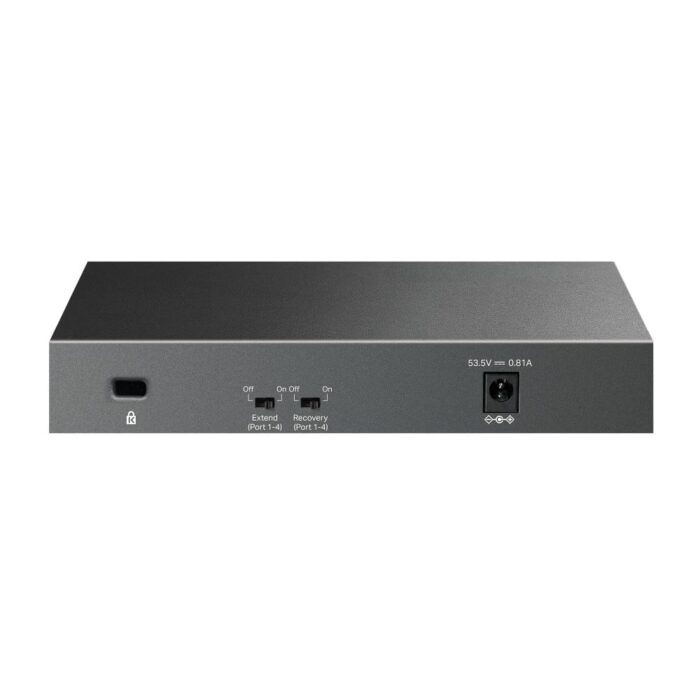

DC input voltage
53.5 V
show more


Input current
0.81 A
show more


Power consumption (max)
Power consumption (max)
47.76 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Power over Ethernet (PoE) power per port
15.4 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
162.38 BTU/h
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
101 mm
show more


Height
Height
25 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE, FCC, RoHS
show more
