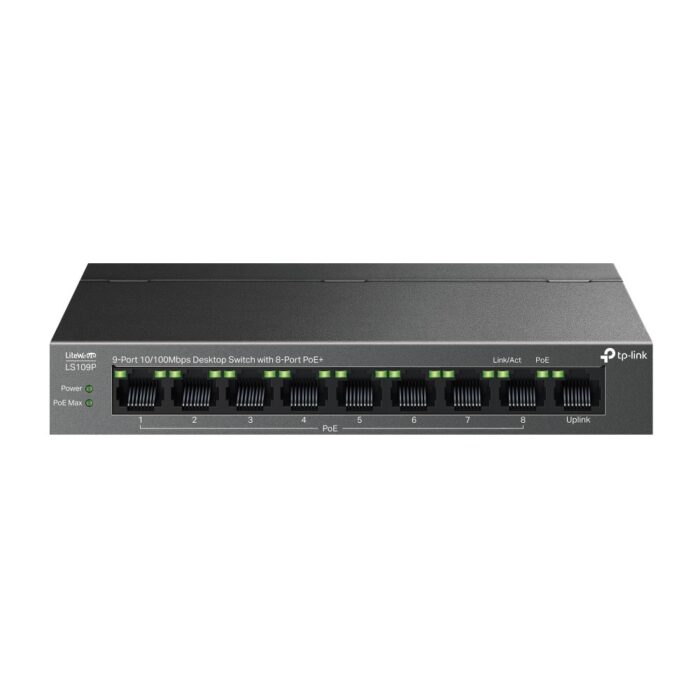

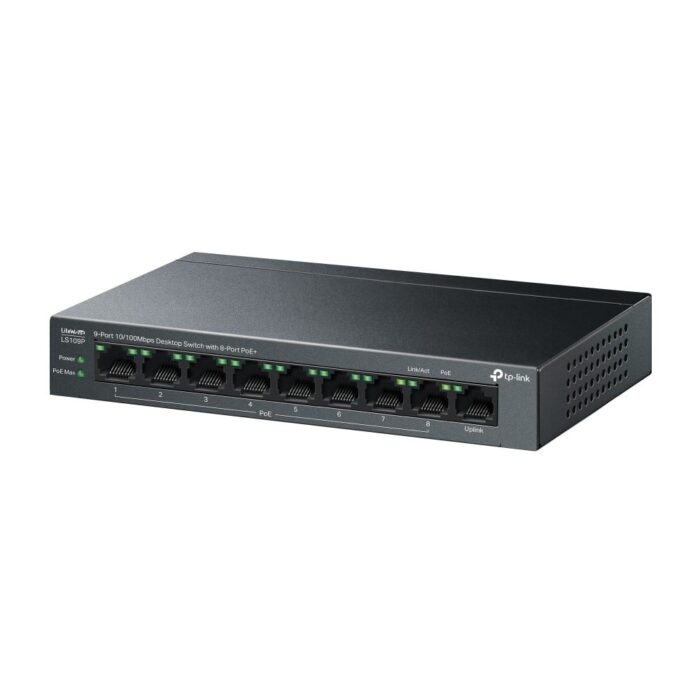

TP-Link LS109P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+

Enhance your network capabilities with the TP-LINK LS109P, a 9-port 10/100 Mbps desktop switch designed for modern networking needs. This device includes nine ports, eight of which support Power over Ethernet Plus (PoE+) technology, allowing you to power devices like IP cameras, VoIP phones, and wireless access points directly through the network cables. This innovative feature eliminates the need for additional power supplies, streamlining your setup and helping reduce clutter.

Each PoE+ port on the LS109P can supply up to 30 watts of power, with a total power budget of 65 watts across all PoE+ ports. The switch operates at speeds of up to 100 Mbps and is designed for quick and easy setup without requiring software installation. Its compact design allows for various placement options, whether on a desktop or mounted on a wall, making it suitable for different installation environments.

The TP-LINK LS109P also supports Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying your network configuration. Encased in a robust metal housing, this switch ensures durability and reliability for long-term use. Offering an efficient solution for expanding your network while providing power to PoE-enabled devices, the LS109P is a valuable addition to small office and home networks, providing a significant advantage over competitors with its comprehensive PoE+ support.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
9
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.8 Gbit/s
show more


Forwarding rate
1.3392 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
1.31 A
show more


Power consumption (max)
Power consumption (max)
73.24 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
249 BTU/h
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
98 mm
show more


Height
Height
27 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE, FCC, RoHS
show more
