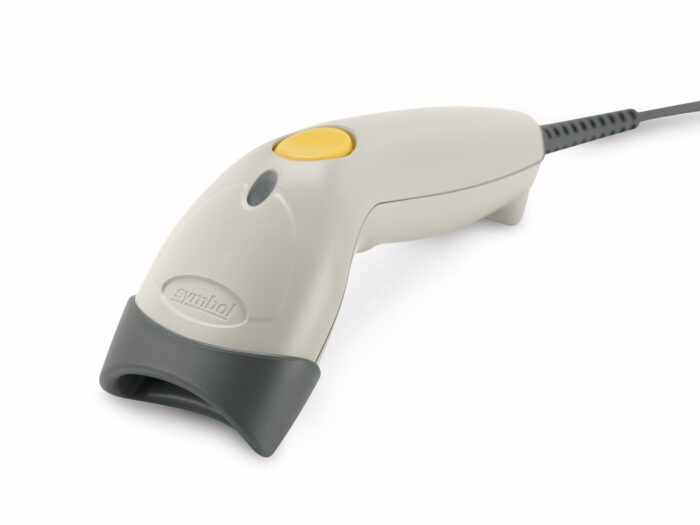

Zebra LS1203 1D Laser White

The Motorola LS1203 is a 1D scanner that utilizes a laser sensor. It features a tilt reading angle ranging from -30 to 30 degrees. This scanner comes with standard USB interfaces and is available in a white color. It requires an input voltage of 5 V and has a power consumption of 100 mA. The weight of the scanner is 122 grams.

Scanning

Scanner type
Scanner type
1D
show more


Sensor type
Sensor type
Laser
show more


Tilt reading angle
-30 – 30°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more


Scan speed
Scan speed
100 sec/page
show more


Decoding standards
UPC/EAN
UPC/EAN + Supplementals
UCC/EAN 128
Code 39
Code 39 Full
ASCII
Code 39 TriOptic
Code 128
Code 128 Full ASCII
Codabar
Interleaved 2/5
Discrete 2/5
Code 93
MSI
Code 11
IATA
GS1 DataBar (RSS)
Chinese 2/5
show more

Ports & interfaces

Standard interfaces
Standard interfaces
USB
show more

Performance

Product colour
Product colour
White
show more

Power

Input voltage
Input voltage
5 V
show more


Power consumption
100 mA
show more

Weight & dimensions

Weight
Weight
122 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more

Other features

Light source
650nm
show more


Electromagnetic emissions
FCC P. 15 Cl. B, ICES 003 Cl. B
show more


Safety
Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1,EN 60825-1, IEC 60825-1, 21CFR1040.10
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
60 x 180 x 62 mm
show more
